1600mm BOPP/PET Film Slitter Rewinder

1600mm BOPP/PET Film Slitter Rewinder

BOPP slitting machine PET slitter rewinder plastic film slitting rewinding machine hot stamping foil slitter rewinder 1600mm film slitter

Send InquiryChat Now



description

    HN1600 BOPP film slitting machine is a multipurpose slitter not only for bopp film but also for pet pp opp laminate film and other material, max slitting width 1600mm, max real working speed 450m/min This machine can be equipped with circular blades to make the speed and performance much better.

    The most advantage for this slitter is that it solves the problem of wide slitting with 1 inch size shaft slitting, the max slitting speed can be 450m/min, the max slitting width can be1600mm.

    So far, we have exported such slitter to USA,South Africa,European customers who have been in hot stamping foil industry for many years.High speed, stable performance,very competitive price make HN1600 to be one of our most popular BOPP/PET film slitter.

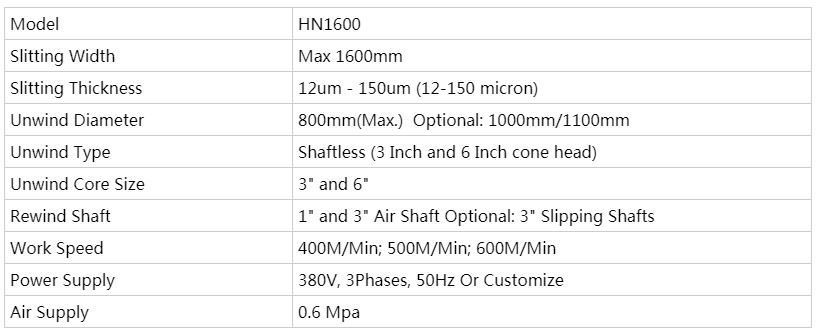

HN1600 SPECIFICATION:



Model

HN1600

Slitting Width

Max 1600mm

Slitting Thickness

12um - 150um (12-150 micron)

Unwind Diameter

800mm(Max.)  Optional: 1000mm/1100mm

Unwind Type

Shaftless (3 Inch and 6 Inch cone head)

Unwind Core Size

3" and 6"

Rewind Shaft

1" and 3" Air Shaft Optional: 3" Slipping Shafts

Work Speed

400M/Min; 500M/Min; 600M/Min

Power Supply

380V, 3Phases, 50Hz Or Customize

Air Supply

0.6 Mpa



1 inch BOPP slitting rewinding test

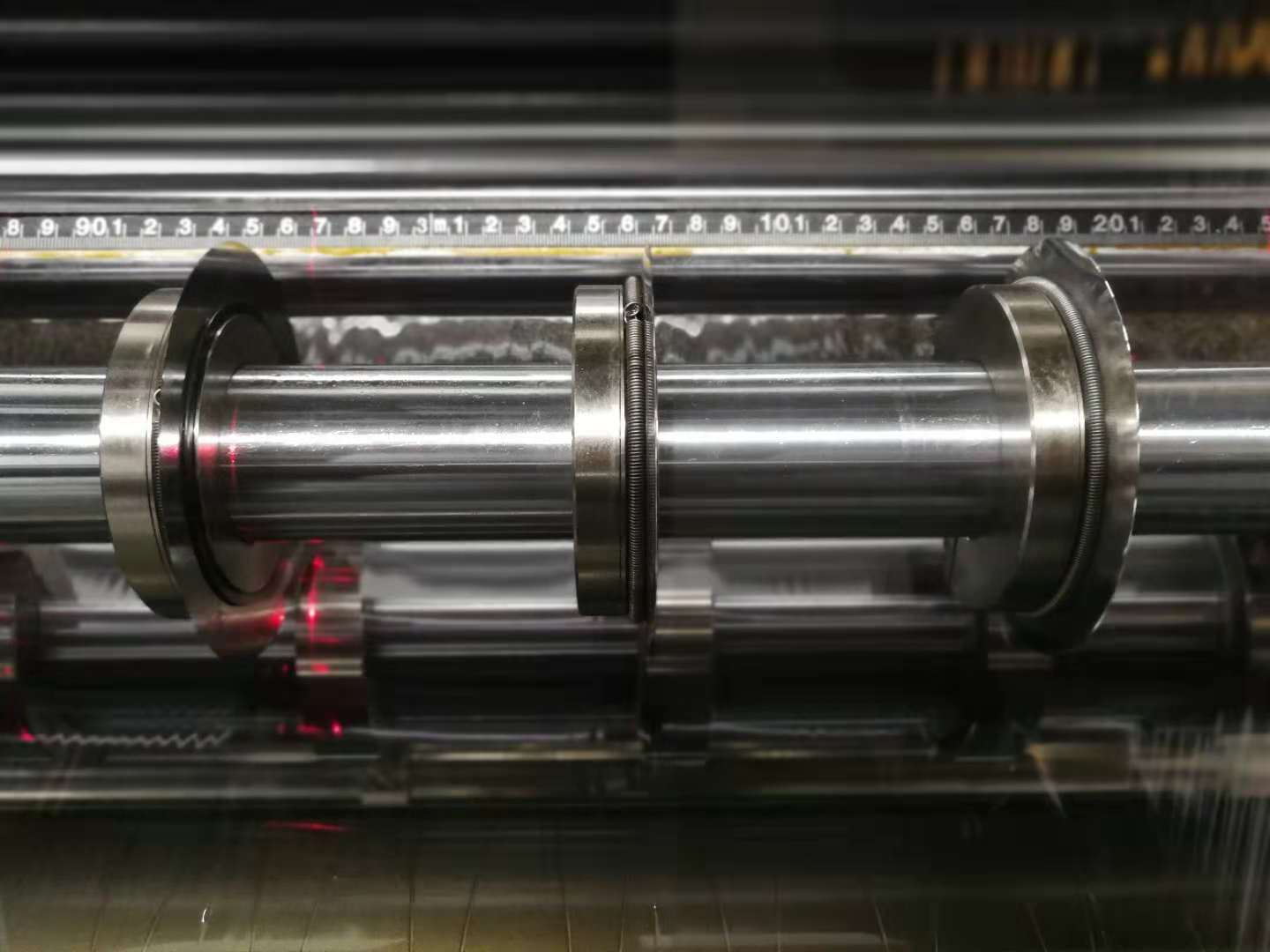

circular blade
