Hot Stamping Foil Slitter Rewinder Machine

Hot Stamping Foil Slitter Rewinder Machine

Newly designed 1300mm width top quality hot stamping foil slitter rewinder machine, widely welcomed by big companies,1 inch and 3 inch roll slitting.

Send InquiryChat Now

HN1300 hot stamping foil slitter rewinder is a mature and reliable product for the customers who in hot stamping foil business. It has been used by Europe,America customers who is converters in hot stamping foil industry.


It is widely welcomed by customers from Europe and America, especially to the company who needs a faster machine to help expand the slitting quantity.

This hot stamping foil slitting machine can slit stable at 400m/min speed,


The most important point is that it can work with both 1 inch air shaft and 3 inch air shaft,it cuts max.1300mm mother roll with 3 inch or 6 inch paper core, it can rewind with both 1 inch core or 3 inch core by changing shaft.


It is welcomed by the printing companies, who produce small quantity foils for printing work and also sell to others. The machine can cut minimum 25mm width rolls, rewind on 1" core and also 3" cores.


Features of this slitter are:


A. Stable performance;   B. Perfect roll shape;

C. Easy operation;          D. Long Life






hot stamping foil slitting machine.jpg

Slitter Specifications

_________________________________________________________________________________________

Main Specifications

ModelHN1300
Unwind Roll Diameter31/40"+800/1000 mm
Max Web Width31"+1300 mm
Jumbo Roll Core Size3" and 6"76mm and 152mm
Jumbo Roll Core TypeShaftless
Rewinding Roll Diameter
23"+600mm
Mini Rewinding Width1"25mm
Rewinding Shafts Size1" and 3"25.4mm and 76mm
Rewinding Shafts TypeAir ShaftOptional: Slipping Air Shaft
Press RollerYes
Blade SystemRazor BladeOptional: Shear Blade
Edge GuiderUltrasonic
Power Supply380V,50HzOr As Customer Requirement
Machine ColorIvory White and Yellow

_____________________________________________________________________________________________________

System and Technology


  • Cnter Driven

  • Easy Touch Screen

  • Perfect Rewinding Conditions

  • High Speed Production

  • 1 Inch Air Shaft Rewinding

  • Unloading Frame

  • Unwind Shaftless

  • Laser Position

  • Press Roller


 Field of Application


  • Hot Stamping Foil

  • Metallic Foil

  • Decorative Film

  • Holographic Film

  • Semi-Rigid Material

  • Laminates

  • Flexible Packing

  • Aluminium

  • Medical/Food Packing

  • Noven Fabric

  • Textile

  • Vinyl Film

  • and other film/foil 12um to 180um thicknesso



hot stamping foil slitter rewinder pictures.jpg




Function Description


-It uses shaftless structure,can load foil rolls with 3 inch and 6 inch cores

-Equipped with hydraulic device, the machine can easily lift up jumbo rolls from floor, save troubles.

-Humanized designed material splice table can help operator change jumbo rolls quickly and straight.

- Professional ultrasonic edge guider help to track material edge, guarantee material goes into the machine straight and rewind flat rolls

-Finished rolls can rewind on 1 inch and 3 inch cores

-Magnetic clutches for rewinding tension control

- Use two full width lay on rollers, rewind tight and good shape rolls


Details Picture

_________________________________________________________________________________________

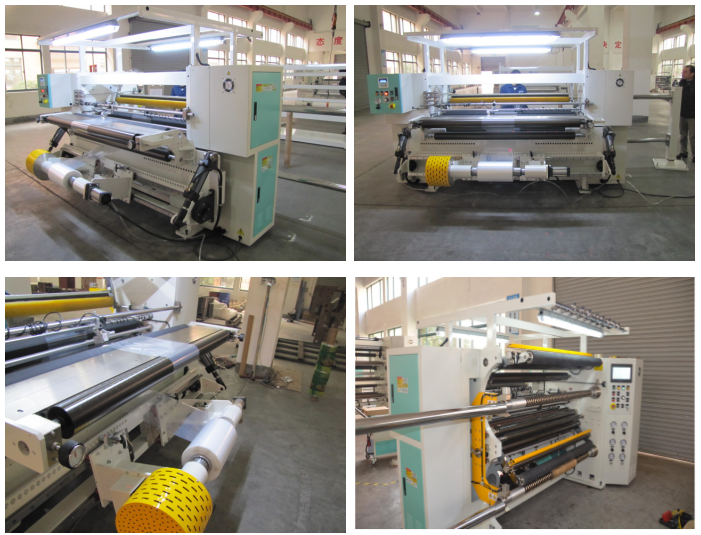

HN1300 slitter rewinder.png

2(001).jpg  3(001).jpg
