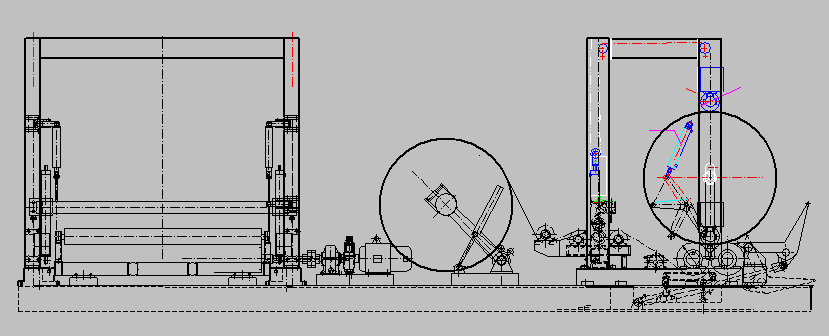

DFQ-3500 Model Slitting Rewinding Machine


DFQ-3500 Paper Slitting Rewinding Machine is specilly designed for the big paper rolls' slitting and rewinding, max unwinding diameter 1500mm, rewinding diameter 1500mm too, it can slit/rewind the paper roll from 40-350g/m2, max speed can be 600m/min,it is a very cost effective but useful slitter rewinder.




Specification:


1: Max Slitting Width:                      3500mm

2: Paper thickness:                         40-350g/㎡

4: Unwinder Maximum Diameter:  φ1500mm

5: Rewind Diameter:                       φ1200mm

6: Machine Speed:                          800m/min

7: Working Speed:                          600m/min

8: Drum Diameter:                          φ420mm

10: Main Machine Motor Power:   55Kw

11: Frequency inventor:                 55Kw

13: Bottom Knives:                         6 pieces

14: Upper Knives:                           air blade 6 pieces

16: Discharge Rolls Working Unit:1set

17: Waste Blowing Fan:                 1 set 11kw

18: Hydraulic stand:                           1 set

19: Work stand:                                  1 set

20: PLC control (Siemens )              1 set

21: 3 Inch Rewinding Air Shaft         1 Pc

          Optional: 6 Inch rewinding air shaft

We also can provide 2500/2800/3000/3200/3500 and other width big paper jumbo roll slitter.


Big Paper Jumbo Roll Slitting Machine
