Kraft Paper Core Cutting Machine

Kraft Paper Core Cutting Machine

high speed automatic half inch and 1 inch kraft paper core cutting machine is made to cut the small size paper core inner diameter from 12 to 25.4mm, half inch from 1 inch. It is a very popular kraft paper core cutting machine used in ttr slitting field.

Send InquiryChat Now

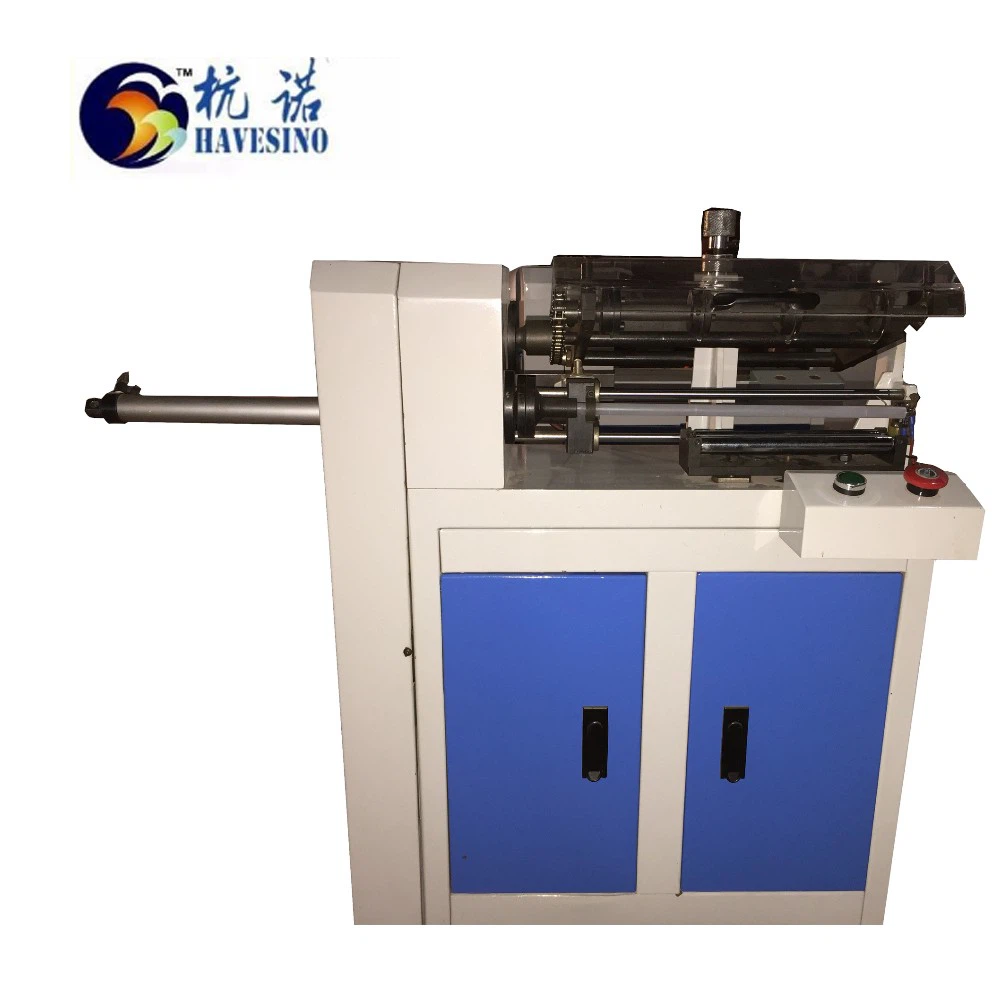

CC300AN High speed automatic 1/2 inch and 1 inch kraft paper core cutting machine CC300AN is a semi automatic kraft paper core cutting machine used  to cut 300mm small size of paper core from 12mm to 25.4mm inner diameter. In fact, it is very difficult to find a smart half inch to 1 inch paper core cutter with good price on market. CC300AN is a very smart but very good price core cutter. We have exported such kind of core cutter to more than 15 countries and regions, most of customers are doing ttr barcode ribbon slitting business.


half inch and one inch paper core cutter.jpg

CC300AN FEATURES:

  • A. Professional designed to cut 1 inch and 1/2 inch paper cores.

  • B. Easy to operate and safety.

  • C. Perfect cutting result.

  • D. High efficiency.

  • E. Automatic upload.


SPECIFICATION:

Max Cutting Width

300mm

Min Cutting Width

10mm

Cutting Inner Diameter

12-25.4mm (half inch to one inch)

Cutting Thickness

Max 6mm

Blade Qty.

10 Pcs

Shafts Size

1 Inch to 3 Inch

Optional Shaft Size

Any size between   35mm-76mm

Air Sources

0.6 Mpa

Power Supply

380V,50Hz

N.W

150kg

Dimension

1000mm*650mm*800mm


We guarantee full test and check before shipment to ensure the quality. Meanwhile, we have policy and guarantee are as following:

A. Guarantee key parts of the machine over one year.

B. Tech support for free during lifetime.

C. Info consulting for free.

D. Material support with good quality and price .


Recommend Product:

barcode ribbon coding foil slitter.jpg


ttr slitting material we have.jpg


Similar Product:


CC600A,25.4-76mm( 1inch to 3 inch) cardboard paper tube cutting machine
