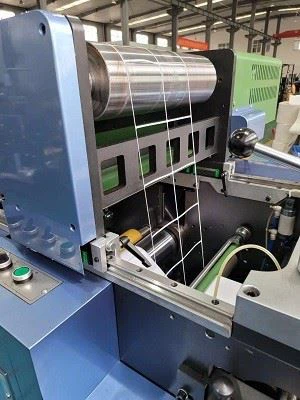

Adhesive Label Die Cutter Slitting Machine
The LR570 is designed for highly automated in-line production for die-cutting all kinds of adhesive label rolls. The touchscreen menu system makes operation easier and reduces setup time.
Specification:
| Working speed | 150m/min |
| Max Web Width | 100-350mm |
| Max Unreeling Diameter | 800mm |
| Max Die Cutting Reeling Diameter | 630mm |
| Dimension | 2550*1500*1700mm |
| Weight | 1500KG |
Standard units:
Here pls allow me to introdu the configutation of LR570SD-Adhesive Label Die Cutter Slitting Machine, we equipped with standard ISO accessories on our machine in order to confirm the stability and fastness:
1.AlR SHAFT UNWINDER WITH ELECTRONIC CLUTCH AND WEB GUIDE,MAX.650MM DIA x1 SET
2.AIR SHAFT REWINDER WITH ELECTRONIC CLUTCH,MAX.40OMM DIA. x1 SET
AUTOMATIC WEB GUIDE+ PNEUMATIC SPLICE TABLE x1 SET
3.FULL SERVO CONTROLLED FEEDING SYSTEM WITH TENSION CONTROL SYSTEM ×x1 SET
4.FULL SERVO CONTROLLED ROTARY / INTERMITTENT DIE-CUTTING STATION & SERVO CONTROLLEDREGISTRATION SYSTEM x1 SET
5.EDGE TRIMMING DEVICE x1 SET6.WASTE REWIND UNIT x1 SET
7.ELECTROSTATIC ELIMINATOR x1 SET
Applicable Materials:
Art paper, Mirror coat paper,Foil paper, PET, PVC, PP,BOPP, PE,Electrostatic paper,Hologram (Laser) flm,Phosphoresent film, Flockings paper, Binding cloth, Textile, Garment, Satin, Cardboard, Kraft, Crepe paper,Polar film, Diffuse film, Silver reflect flm, Laminate copper foil, Aluminum foil, Photoelectric film, Conductor film,Soft PC plate, LCD conductor glue, High Tec.Laminate material, Shockproof glue,EMl insulator,Sponge rubber,Conductor Sponge rubber, Mylar, Glue side printing labels, Security labels...etc !!
If you have interest in this model, welcom to contact for further communication!
