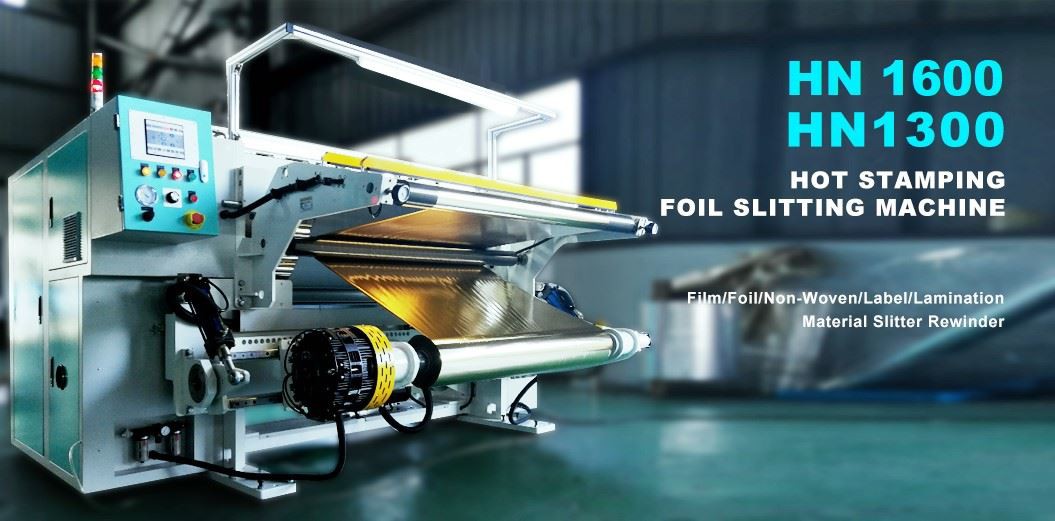

Thermal Film Cutter And Rewinder Machine

FEATURES of the HN1300NW

A.24 Hours * 7 days Online Support

B.Quick Operation Learning  and Free Installing

C.Full Auto Tension Control

D.Stable Performance and Long Life Use

E.Random Adjust the Tightness of the Roll

F.High Precise ,High Speed, Perfect Edge Slitting

APPLICATION For the HN1300NW

1.    12-180um HOT STAMPING FOIL,COLDING FOIL,HOLOGRAPHIC FOILS,METALIZED FOIL and so on
2.    12-180um PRIMARY FILM (BOPP,PVC,LDPE,PET,SINGLE SILICON FILM and so on) OPTIONAL 12-400um
3.    12-180um LAMINATES   (FILM to FILM,FILM TO FOIL,FILM TO PAPER and so on)
4.    Non-Woven FABRIC
5.    40-80gram PAPER/LABEL/ADHESIVE LABEL
6.    20-40UM ALUMINUM FOIL
         AND OTHER MATERIAL (PlS CHECK WITH THE SALES MANAGER)

IN HAVESINO

We HAVESINO Group is a R&D and Manufacturer of Slitter Rewinder and Converting Machinery for the worldwide Packaging and Label industry over 12 years.There are in excess of  800 of machine installations worldwide!

Our HAVESINO's primary goal is to build ergonomic machines that operators find easy to use, and maintenance personnel find easy to maintain. We believe that our customer's prosperity is directly related to our success. That's why, in all aspects of our operation, every effort is made to achieve nothing less than your total satisfaction.

Today,HAVESINO's focus is on designing,manufacturing and servicing the highest quality slitter rewinders and other auto machinery in the world. Selling the machine is not the end of the deal! Our faith is that a sale is never final without a commitment to service.

Our History

We Have These for Flexible Packaging Industry

FUNCTIONAL DESCRIPITION  ：                              HN1300 NW

1           3 INCH SLIPPING FRICTION AIR SHAFT to ensure the rewinding tension stable;

2           Full Width Pressing Rollers with pneumatic control to ensure the finished roll surface keep smooth;

3           Anti Stati Remove Brush for both up and down rewinding press roller

4           Small Individual Assistant Press Roller specially designed for the individual roll which not average thickness

5           Laser Position Light helps to set cores easily and quickly, begin next run with very short downtime.

6           Automatic Tension Control to ensure the rewinding tension stable and operation and set easily.

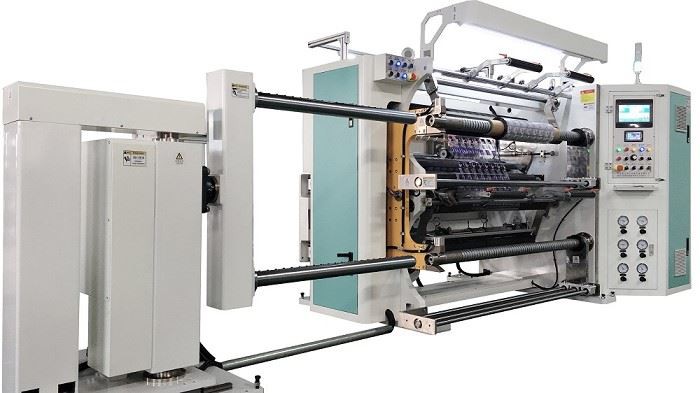

With Unloading Unit:

1       AUTO TURRET VERTICAL ROLL UNLOADING DEVICE move horizontally and parallelly, make finished roll unloading much easier than before;

2         Auto Unloading Function to avoid manual hand push, save time and energy of operator.

For Blade Unit:

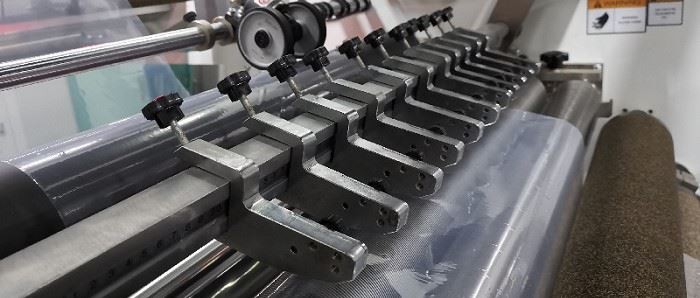

1          New Generation Shavor/Razor Blade System make the setting easily setting very quick and easy; This system is created by Havesino Team.

       2           Shear Circle Blade slit for all kind of material stable slitting at high speed (OPTIONAL)

For Unwinding Unit:

1          3 Inch and 6 Inch Shaftless Unwinding System, easily change the jumbo roll;

2          Magnetic Brake with Load Cell Close Loop System for unwind automatic tension control

3          Hydraulic Lifting System to help the operator loading the jumbo roll max. 1 ton from floor;

4          Back Control Button & Screen Display make the operator easily control the slitter at back side

5 Material Splice Table, easy change and guarantee edge consistency;

6          EPC Edge Guider follow both edge or printing line;

PACKING INFORMATION

Packing Size

GUARANTEE AND SERVICE

1   ONE YEAR GURANTEE FOR THE KEY PARTS OF THE MACHINE, THE PARTS ARE AS FOLLOWING:

     MOTOR, PLC, TOUCH SCREEN,MAGNETIC POWDER CLUTCH

2   MACHINE INSTALLING AND WORKER TRAINNING SERVICE.

       A. ENGINEER AVAILABEL ON YOUR FACTORY TRAINNING AND INSTALLING

       IF YOU PAY THE VISA COST, AIR TICKET, FOOD, HOTEL AND SUBSIDY.

       B. TRAINNING YOUR WORKER AT OUR FACTORY SERVICE IS AVAILABEL

       YOU ONLY NEED TO PAY THE HOTEL COST.

  3   WHOLE LIFE TECHNICAL SUPPORT, 24 HOURS BY 7 DAYS CALLING-SERVICE.

WE GUARANTEE FULLY TEST AND CHECK BEFORE SHIPMENT TO ENSURE THE QUALITY.

The main difference between our slitter and others are listed as followings

1) Our Slitter Use 50mm Steel Wall Board, Which is Heavy, to Make the Slitter Work More Stabel.
There are 5 strong girders between the 2 pcs wall board.
And we also make the strong base board to make sure the slitter not shake when runs at high speed;

2) Auto Sense the Diameter of Jumbo Roll.
You do not need to set the diameter of jumbo roll, our slitter can sense it by itself when you run the slitter;

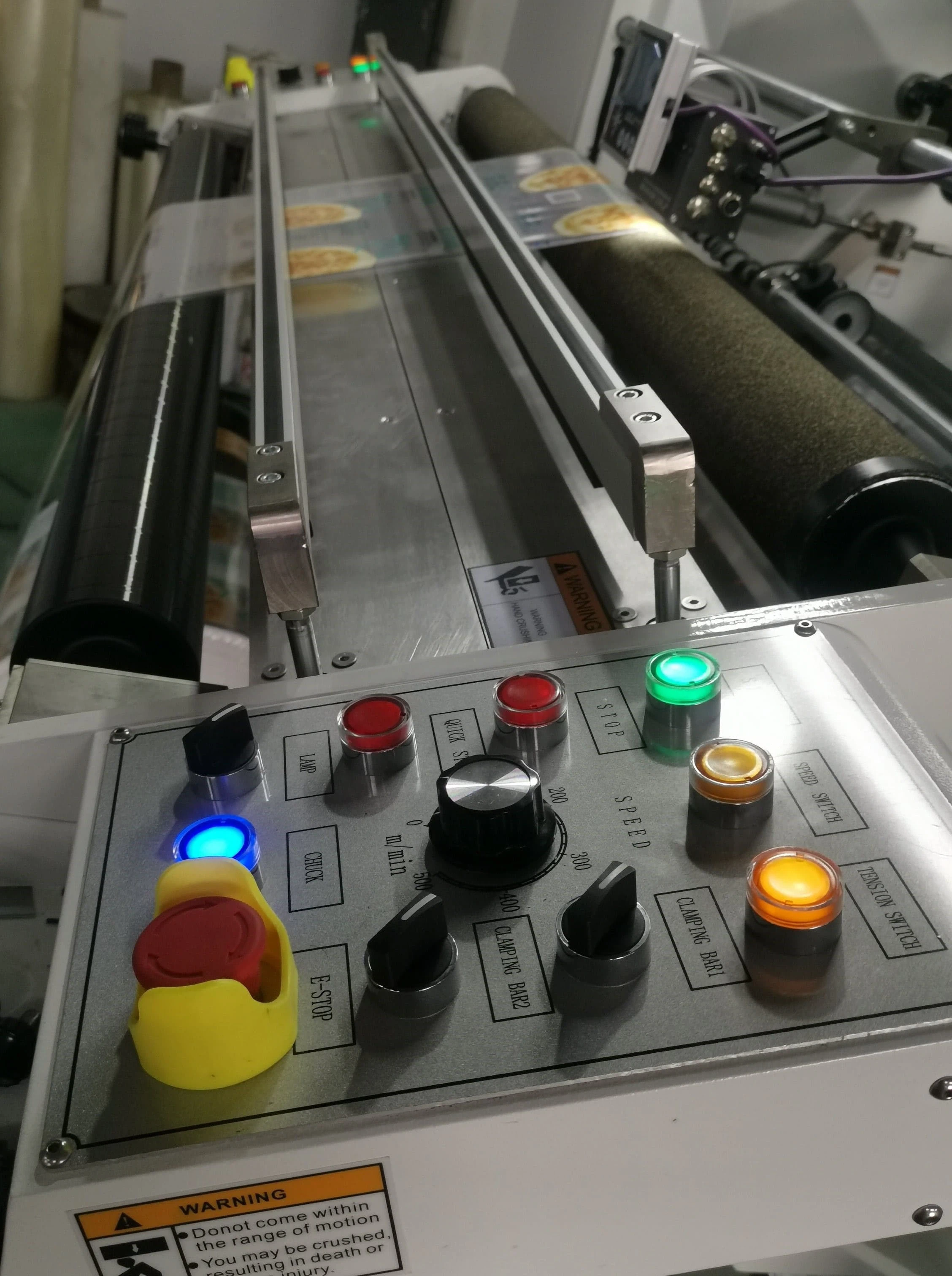

3)Humanization Design for the Back Control System
Including the left and righ button Control Panel
Including the back display screen which show same main parameter with the front display screen;
Back Control System is very useful in real production, we find most of operator needs to check the jumbo roll quality or joint parts or some defect printing;

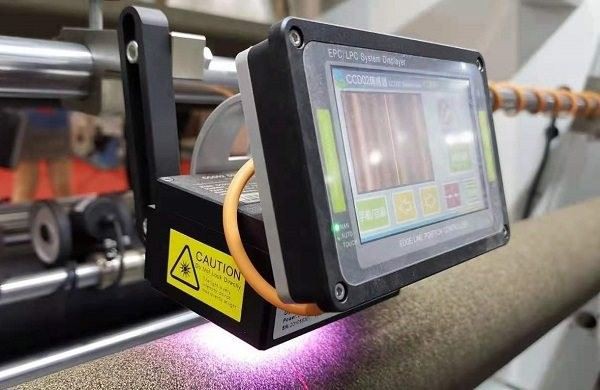

4)PAUSOURCE Edge Guider
It does not only can follow and guide the edge of the material, but also can follow the printing line and image for the Printed Material

5) Auotmatic and Easy Setting and Operation
The slitter is full automatic tension control, you only need to set following parameter, then the slitter will work itself:

Slitting Length
Material Thickness
Innitial Tension for Unwinding
Innitial Tension for Rewinding

6) 2 Rewinding System: Slipping Air Shaft and Normal Air Shaft

Slipping air shaft and normal air shaft use 2 different control parts and system.
Most of chinese slitter only have one system, for example, only have normal air shaft rewinding system.
Later, when you want to add slipping air shaft system, you will find you can not.
Our slitter combine both system, you only change the model on screen, install the slipping air shaft, then It will work.

7) Auto Stop at Setting Length and the Setting Diameter
Our slitter will feel both the length and the mini diameter you set, and stop automatically at the set length or the set mini diameter.

8) Auto Tension Control
Our slitter can feel the film tension by itself, and adjust the unwinding tension automaticly during running.

9) 2 Blade System: Razor Blade and Circle Blade
Even you only pay razor blade system, but we will leave the parts and space for circle blade system.
In this case, you can use the circle blade system when you buy the circle blade and shaft.
Most other Chinese slitter only have Razor Blade System, it will be very complex or impossible to use both system.

10) Real Max Speed:
We promise the slitter can work at 500m/min speed, it means it can works at 500m/min.
Other Chinese slitter promise 400m/min, the real speed may be only 200-300m/min.

11) 2 Years Guarantees for the Main Parts of the Machine to Ensure the Use of the Slitter freely, These Parts Include:
Motor
PLC
Converter
Screen
Edge Guiders

12) 7*24 Hours Online Technical Service Group:
A Wechat Technical Support Group Will Be Established Once You Start Use Our Slitter.
We Ensure Imediately Feedback if You Meet At Problem.
