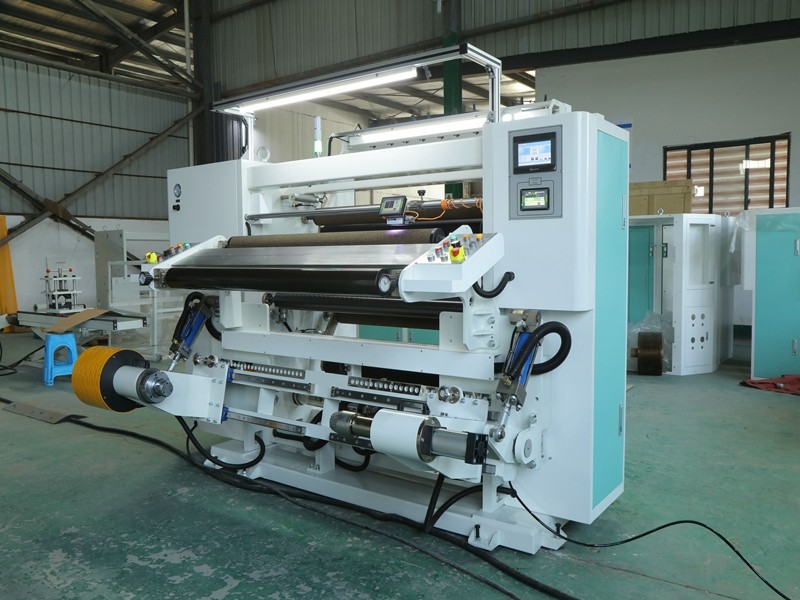

Cantilever Duplex Slitter Rewinder
APPLICATION and FEATURES：
Cantilever Duplex Slitter Rewinder HN1600 is suitable for the slitting of plastic films, paper and laminates and all the materials used in the flexible packaging market.
HN1600 is a universal machine suitable for standard jobs and also for narrow web slit and label stock.
--Jumbo roll on shaftless unwind stand with lifting from floor level to working position.
--Web guiding system for the batch roll alignment and edge and printed line reading.
--Servo motors with digital inverters.
--Version with 2 motors: one for draw unit and one for both rewind stations.
--Optional version with 3 motors: one for draw unit and one for each rewind station
--Fully automatic and programmable tension controls both in unwinding and rewinding.
--Touchscreen operator panel for data setting and visualization, recipe storage and diagnostic
--Electrical and pneumatic control easy to reach
--Quick loading and unloading of the finished rolls
Basic specification:
|
MODEL |
HN1600 |
| SLITTING WIDTH |
300mm-1600MM |
|
SLITTING THICKNESS |
12-250UM |
|
UNWIND DIA |
MAX 800MM OPTIONAL: MAX 1000M |
|
UNWIND CORE I.D |
SHAFTLESS 3 INCH AND 6 INCH |
|
REWINDING DIA |
MAX 600MM(3 INCH REWIND),MAX 250MM( 1 INCH REWIND) |
|
REWINDING WIDTH |
MINI 30MM |
|
REWINDING CORE I.D |
3 INCH NORMAL AIR SHAFT EACH 2 PCS |
|
SLITTING UNIT |
SHEAR BLADE+RAZOR BLADE EACH 10 PCS |
|
MECHANICAL SPEED |
MAX550M/MIN |
|
WORKING SPEE |
MAX500M/MIN |
|
MACHINE FRAME THICKNESS |
50MM |
|
METER COUNTER |
METER COUNTER |
|
WASTE EDGE UNIT |
AIR BLOWER |
|
POWER SOURCE |
380V,3 PHASE 4 WIRES,50Hz |
|
PNEUMATIC SOURCE |
0.7MPA |
|
LASER POSITIONING |
8 PCS |
|
MACHINE SIZE (REF. ONLY) |
3250mm(not including unloading frame tree)×2550mm×1970mm
4490mm(including the unloading frame tree)×2550mm×1970mm |
|
FLOOR SPACE(REF.ONLY) |
4500MM*3300MM |
|
N.W/G.W (REF. ONLY) |
3500/4000 |

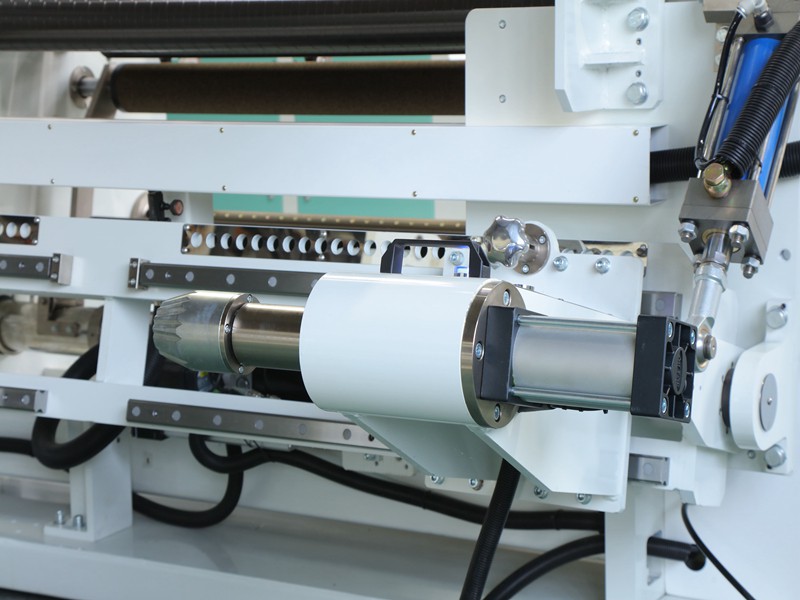

Details:
About HAVESINO
This is Klay from HAVESINO , We are one of top and leading manufacturer of Slitter Rewinder for over 12 years in China.
There are over 1000 pcs Slitter Rewinders in more than 85 Countries in the worldwide.
