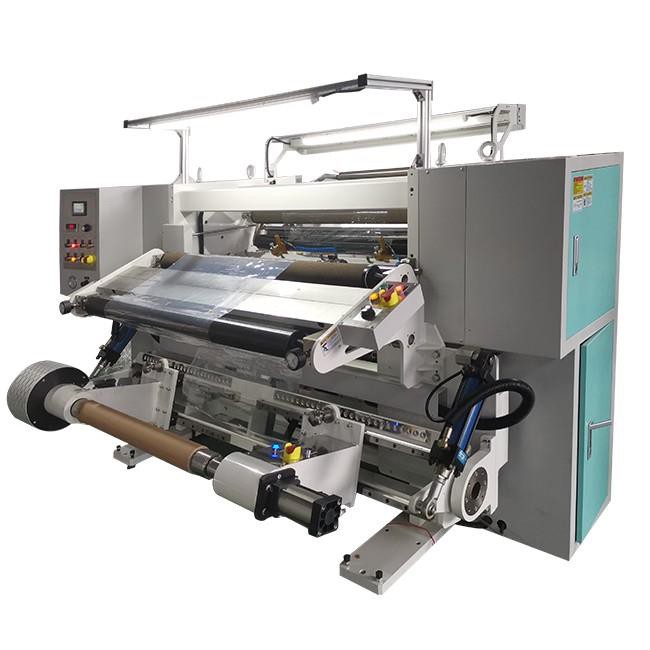

Dual Shaft Slitter Rewinder
Dual Shaft Slitter Rewinder Application:
A. 12-180um HOT STAMPING FOIL,COLDING FOIL,HOLOGRAPHIC FOILS,METALIZED FOIL and so on;
B. 12-180um PRIMARY FILM (BOPP,PVC,LDPE,PET,SINGLE SILICON FILM and so on)
C. 12-180um LAMINATES (FILM to FILM,FILM TO FOIL,FILM TO PAPER and so on)
D. Non-Woven FABRIC
E. 40-80gram PAPER/LABEL/ADHESIVE LABEL;
AND OTHER MATERIAL (PlS CHECK WITH THE SALES MANAGER)
Dual Shaft Slitter Rewinder Basic specification:
| SLITTING WIDTH |
300mm-3000MM |
|
SLITTING THICKNESS |
12-250UM |
|
UNWIND DIA |
MAX 800MM OPTIONAL: MAX 1000M |
|
UNWIND CORE I.D |
SHAFTLESS 3 INCH AND 6 INCH |
|
REWINDING DIA |
MAX 600MM(3 INCH REWIND),MAX 250MM( 1 INCH REWIND) |
|
REWINDING WIDTH |
MINI 30MM |
|
REWINDING CORE I.D |
3 INCH AIR SHAFT AND 1 INCH AIR SHAFT OPTIONAL: 6" AIR SHAFT, 3" OR 6" DIFFERENTIAL FRICTION AIR SHAFT |
|
SLITTING UNIT RAZOR BLADE |
EACH 10 PCS |
|
MECHANICAL SPEED |
MAX450M/MIN |
|
WORKING SPEE |
MAX400M/MIN |
|
MACHINE FRAME THICKNESS |
40MM |
|
METER COUNTER |
METER COUNTER |
|
WASTE EDGE UNIT |
AIR BLOWER |
|
POWER SOURCE 380V |
3 PHASE 4 WIRES,50Hz |
|
PNEUMATIC SOURCE |
0.8MPA |
|
LASER POSITIONING |
10 PCS |
|
MACHINE SIZE (REF. ONLY) |
2950mm(not including unloading frame tree)×2550mm×1970mm 4190mm(including the unloading frame tree)×2550mm×1970mm |
|
FLOOR SPACE(REF.ONLY) |
4200MM*3300MM |
|
N.W/G.W (REF. ONLY) |
3000/3500 |
Dual Shaft Slitter Rewinder Details:
