PRODUCTS DESCRIPTION

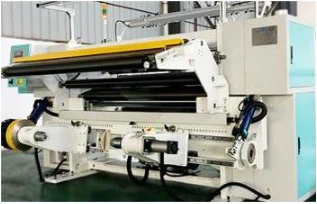

The HN1300T Duplex Turret Slitting Machine is our latest new-generation slitter, and it ranks among the most advanced slitting machines manufactured in China.
The HN1300T is a high-precision, high-speed duplex turret slitting and rewinding machine suitable for processing a wide range of materials, including:
Hot stamping foil, cold foil, holographic foil, metallized foil
Primary films: BOPP, PVC, LDPE, PET, single silicon films, etc.
Laminates: film-to-film, film-to-foil, film-to-paper, etc.
Non-woven fabrics
Paper, labels, adhesive labels
Aluminum foil
Other materials: please consult your sales manager
FEATURES
1.Safety Design
Operator safety is prioritized in every design detail. All rotating components in the slitting zone are fully enclosed with safety guards and cannot be touched during operation. A laser safety scanner safeguards the rewinding area.
2.Intuitive Control Interface
Multiple control panels are arranged for convenient operation: two touchscreen panels for slitting and rewinding, one fixed panel at the unwinding section, plus a mobile handheld panel for jumbo roll loading.
3.Full Servo Drive System
The machine is equipped with 16 servo motors in total. The main servo motor drives the main drive roller, lay-on rollers, knife shafts and banana roller. An unwinding AC servo motor paired with a dancer roller regulates the master roll tension. The third AC servo motor drives both rewinding shafts, with a fourth servo motor available as an upgrade option.
4.High Operating Speed up to 800 m/min
The machine features a 1300 mm working width. Its standard operating speed reaches 600 m/min, with an optional upgrade for a maximum speed of 800 m/min.
5.Robust & Stable Mechanical Structure
The machine weighs 8 tons overall, constructed with 60 mm thick side frames and 5 heavy-duty cross beams for integral rigidity. These heavy-duty structural components guarantee ultra-stable high-speed operation and an extended service life.
GENERAL SPECIFICATIONS
| MODEL | HN1300T |
| Slitting Thickness | 12–200 μm |
| Slitting Width Max | 1300 mm / Min 300 mm |
| Unwinding Diameter Max | 1300 mm |
| Unwinding Type Shaftless | 3" and 6" |
| Unwinding Brake | Air brake |
| Rewinding Width | Min 35 mm |
| Rewinding Diameter | Max 600 mm |
| Rewinding Shaft | 3" slipping friction air shaft |
| Slitting Unit | Razor blade + circle blade |
| Mechanical Speed | Max 650 m/min |
| Working Speed | Max 600 m/min |
| Waste Edge System | Air blower |
| Laser Position Lights | 10 pcs |
| Power Supply | 380V, 3-phase, 50Hz |
| Air Supply | 0.7 MPa (min) |
| Net Weight | 8000 kg |
WIDE MATERIAL COMPATIBILITY
Versatile Slitting Solutions for Flexible Packaging and Industrial Materials
The HN1300T is designed for high-speed, precision slitting of a wide range of flexible packaging and industrial materials. Its dual razor and circular knife systems, combined with closed-loop tension control, ensure clean slitting edges, stable web handling and consistent winding quality across different materials and thicknesses.
Suitable Materials
BOPP / PET / PE Films · Printed & Laminated Films · Hot & Cold Stamping Foils · Aluminum Foil · Paper & Adhesive Labels · Nonwoven Materials
Material Thickness: 12–200 μm
Web Width: 300–1300 mm
Minimum Finished Roll Width: 35 mm
HIGHER EFFICIENCY THAN CONVENTIONAL DUPLEX SLITTERS
4-Shaft Turret Rewinding for Continuous, High-Throughput Production
Unlike conventional duplex slitters that must stop for finished-roll
unloading and core replacement, the HN1300T features a 4-shaft turret
rewinding system. While one pair of shafts is rewinding, operators can
unload finished rolls and prepare new cores on the other pair. The turret
then switches quickly to the prepared shafts, significantly reducing
downtime between production cycles.
Combined with automatic blade positioning, laser-assisted core
alignment, hydraulic jumbo-roll loading and optional robotic unloading,
the HN1300T shortens setup and changeover time while maintaining
stable, continuous production.
SUPERIOR FINISHED ROLL QUALITY
Smooth Winding, Uniform Tension and Neatly Aligned Roll Edges
The HN1300T combines closed-loop automatic tension control, slip-friction air shafts and full-width lay-on rollers to maintain stable winding tension as the roll diameter and operating speed change.
Even during high-speed production, the machine helps minimize loose winding, telescoping, wrinkles and uneven roll edges. The result is smooth roll surfaces, consistent roll hardness, clean slitting edges and neatly aligned finished rolls, ready for printing, laminating, bag making, label converting and other downstream processes.
Four Quality Advantages
1. SMOOTH ROLL SURFACE
Full-width lay-on rollers keep the material firmly supported during rewinding, helping reduce wrinkles, trapped air and surface irregularities.
2. UNIFORM WINDING TENSION
Closed-loop tension control automatically adjusts the winding tension according to roll diameter and operating speed, ensuring consistent roll hardness from the core to the outer layers.
3. NEATLY ALIGNED ROLL EDGES
Stable web guiding and rewinding control help minimize web deviation and telescoping, producing straight and accurately aligned roll edges.
4. CLEAN SLITTING EDGES
Razor blades or circular knives can be selected according to the material, helping reduce burrs, edge damage and material stretching.
After-Sales Service & Support
Reliable Support from Installation to Long-Term Production
Our service does not end with machine delivery. HAVESINO provides professional support throughout installation, commissioning, operator training and daily production. From remote troubleshooting and spare-parts supply to maintenance guidance, our technical team is committed to keeping your machine running reliably and efficiently.
ON-SITE SERVICE
On-site installation, commissioning and technical service are available when required. Service arrangements are confirmed according to the customer's location and project requirements.
OPERATOR TRAINING
We provide training on machine operation, parameter setting, material changeover, routine maintenance and safety procedures.
REMOTE TECHNICAL SUPPORT
Our technical team provides online troubleshooting through video calls, photos and operating data to help identify and resolve problems quickly.
SPARE PARTS & MAINTENANCE
Reliable spare-parts supply and preventive maintenance guidance help reduce unexpected downtime and extend machine service life.
Frequently Asked Questions
Everything You Need to Know Before Choosing Us
How many years have you been in the slitter, rewinder and converting industry?How many years have you been in the slitter, rewinder and converting industry?
+
-
We have been engaged in the slitter, rewinder and converting machine industry for more than 16 years. Since our company was established in 2010, we have focused on slitting, rewinding and packaging-related equipment, serving customers in different converting industries worldwide.
Are you a factory or a trading company?
+
-
We are a factory and manufacturer specializing in slitter, rewinder and converting machines. We provide machine design, production, testing, installation guidance and after-sales technical support.
Where have your machines been sold?
+
-
Our machines have been sold to many countries and regions worldwide. Around 30% of our market is in North and South America, including the USA, Canada, Mexico, Costa Rica, Brazil and Chile. Around 40% is in Europe, including Germany, France, Italy, the Netherlands, Switzerland, Hungary, Greece and Poland. The remaining market is mainly in Asia, Africa and the Middle East, including Korea, Malaysia, Russia, South Africa, Iran and the UAE.
What kind of slitter, rewinder and converting machines do you sell?
+
-
We mainly focus on machines for the following industries and materials: primary films such as BOPP, PET, BOPET and PVC; laminated materials; hot stamping foil, cold foil, metalized foil and aluminum foil; thermal paper; TTR materials such as barcode ribbon, coding foil and fax ribbon; and automatic solutions for packaging, label and related converting industries.
Do you have agents in other countries?
+
-
Currently, we have exclusive agents in Turkey and Russia who can be reached through us. Additionally, we have some overseas partners assisting with equipment sales and service support. If you want to know more about the specific market situation, you can contact us for more information.
