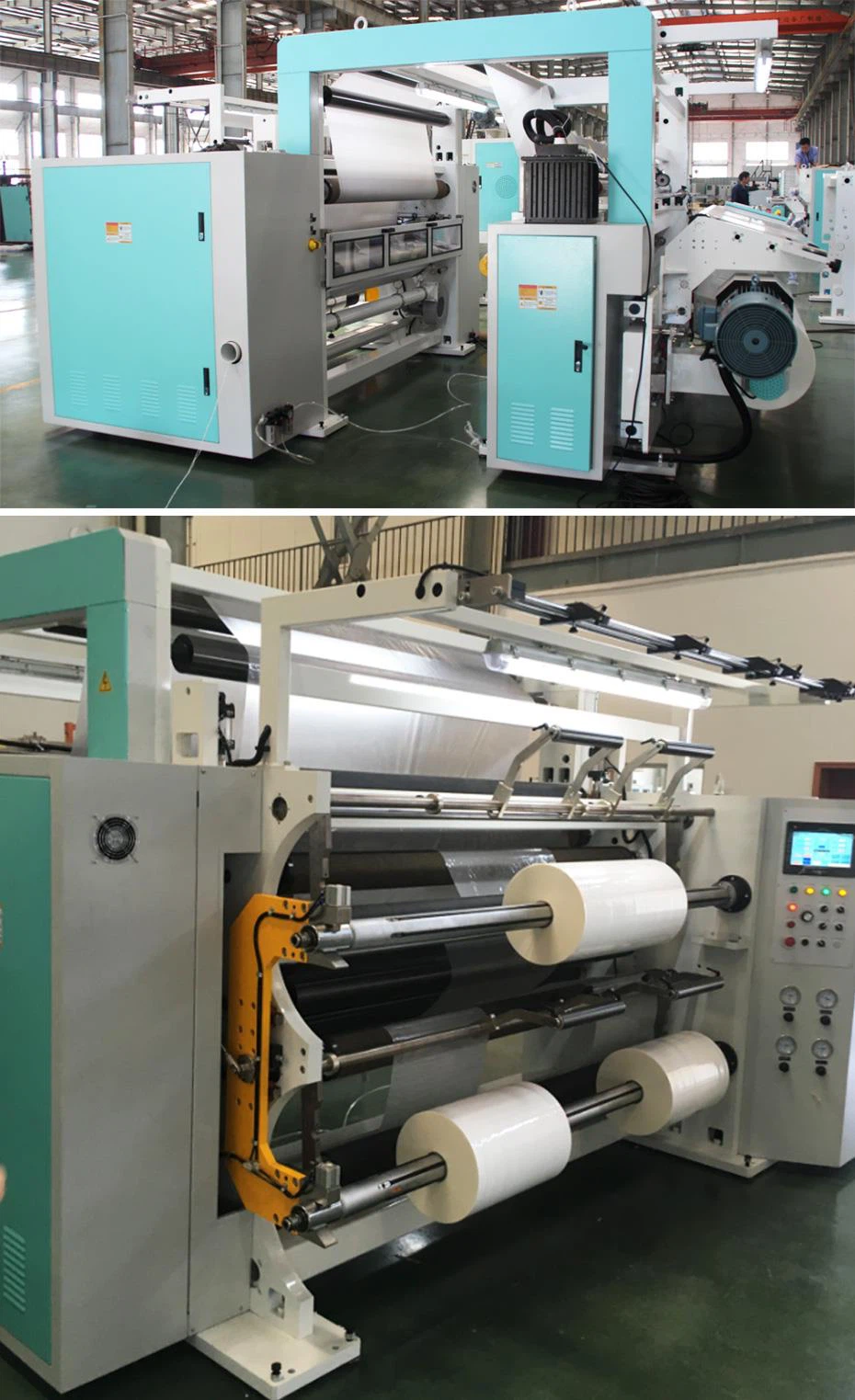

laminated film slitting machine
This machine is a kind of laminating and cutting equipment with high precision and high sensitivity. Suitable for slitting industrial tape, cellophane tape, protective film, copper foil, aluminum foil, OPP, PP, PE, PVC, paper, cloth, etc. This machine is widely used in printing, packaging, electronics, leather, clothing, plastic and other industries.
APPLICATION
A. 12-180um Hot Stamping Foil Slitting Machine
B. 12-180um PRIMARY FILM (BOPP,PVC,LDPE,PET,SINGLE SILICON FILM and so on)
C. 12-180um LAMINATES (FILM to FILM,FILM TO FOIL,FILM TO PAPER and so on)
D. Non-Woven FABRIC
E. 40-80gram PAPER/LABEL/ADHESIVE LABEL
AND OTHER MATERIAL (PlS CHECK WITH THE SALES MANAGER)
Basic specification:
| SLITTING WIDTH | MAX1300MM |
| SLITTING THICKNESS | 12-180UM |
| UNWIND DIA | MAX1200MM OPTIONAL: MAX 1300MM |
| UNWIND CORE I.D | 3 INCH AND 6 INCH |
| REWINDING DIA | MAX610MM OPTIONAL: MAX 800MM |
| REWINDING WIDTH | MINI 50MM |
| REWINDING CORE I.D | 3 INCH |
| SLITTING UNIT | SHEAR BLADE 10 PCS OPTIONAL: RAZOR BLADE |
| MECHANICAL SPEED | MAX450M/MIN |
| WORKING SPEED | MAX400M/MIN |
| MACHINE FRAME THICKNESS | 40MM |
| METER COUNTER | METER COUNTER |
| WASTE EDGE UNIT | AC MOTOR REWINDING |
| POWER SOURCE | 380V,3 PHASE,50Hz |
| PNEUMATIC SOURCE | 0.8MPA |
| LASER POSITIONING | 10 PCS |
