Slitting Machine Manufacturers

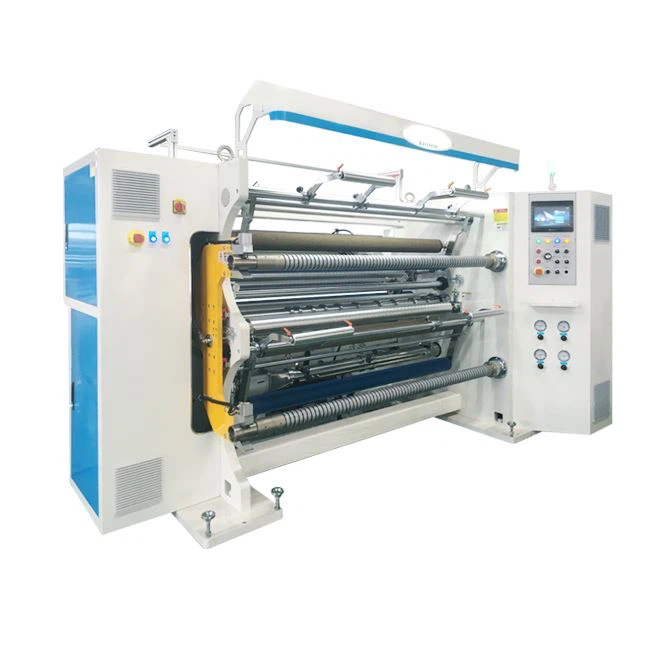

for Film Lamination Slitter Rewinder HN1300
HAVESINO is a producer and supplier slitter rewinders and converting machinery for the packing and label industry worldwide over 10 years,we have in excess of hundreds of machine installations worldwide!
HAVESINO is a slitting machine manufacturers for film,lamination,foil, paper,fabric and other material over 10 years.
Here we recommend you our new generation slitter HN1300.
APPLICATION
1 12-180um HOT STAMPING FOIL,COLD FOIL,HOLOGRAPHIC FOILS,METALIZED FOIL;
2 12-180um PRIMARY FILM (BOPP,PVC,LDPE,PET,SINGLE SILICON FILM and so on)
3 12-180um LAMINATES (FILM to FILM,FILM TO FOIL,FILM TO PAPER and so on)
4 40-80gram PAPER/LABEL/ADHESIVE LABEL
5 Non-Woven FABRIC AND OTHER MATERIAL (PlS CHECK WITH THE SALES MANAGER)
BASIC SPECIFICATION
1 MODEL HN1300
2 MATERIAL WIDTH MAX 1300MM
3 SLITTING THICKNESS 12um-180um
4 UNWIND DIA. 800MM (MAX.)
5 UNWIND CORE DIA. 76MM (3 INCH) AND 153MM (6 INCH)
6 UNWIND TYPE SHAFTLESS
7 REWIND DIA. 600MM(MAX)
8 REWIND WIDTH RAZOR BLADE 25MM MINI
SHEAR BLADE 45MM MINI
9 REWIND CORE DIA 76MM( 3 INCH) AND 152MM (6 INCH)
10 REWIND CORE TYPE FRICTION AIR SHAFT
11 SLITTING UNITE SHEAR BLADE 50 PCS + RAZOR BLADE 50PCS
12 MECHANICAL SPEED 600M/MIN (MAX)
13 WORKING SPEED 500M/MIN (MAX)
14 POWER 380V±10%,3 PHASE,50Hz
15 TOTAL AROUND : 60 KW
16 AIR CYLINDER-DRIVEN UNLOADING FRAME
17 LASER POSITIONING AND LIGHT DEVICE 10 PCS
18 HYDRAULIC LIFTING UNIT
WORKING CONDITION:
1. RELATIV HUMIDITY (RH) 60%
2. AMBIENT TEMPERATURE 50℃
DESCRIPTION NOTE:
1. UNWINDING UNIT:
A. Hydraulic lifting system to help the operator loading the jumbo roll max. 1 ton from floor;(Optional)
B. With 3" and 6" inch chucks, this slitter can load both 3" or 6" core jumbo roll without change anything;
C. With diameter sensor, our slitter can sense the diameter of the jumbo roll aromatically, no need the operator to enter the diameter of jumbo roll.
D.With tension sense roller, our slitter can feel the tension of jumbo roll and adjust the tension automatically by itself.
2.LPC(EDGE GUIDING)
We use Taiwan Pausource edge guider,our slitter can follow the edge or the printing mark or printing image on the jumbo roll;
1. SPLICE TABEL
To make the jumbo roll changing more easy and quickly;
2. BLADE UNIT
With both Razor Blade and Shear Blade system, our slitter can slit all kind of material from foil/film to laminate to fabric and so on.
3. TURRET REWINDING UNIT
A. 2 shafts are in working, another 2 shafts are stand by for preparing, it saves half time of changing roll and cores;
B. Auto cross cutting and auto sticking the material on the core, easy and quick for start slitting;
