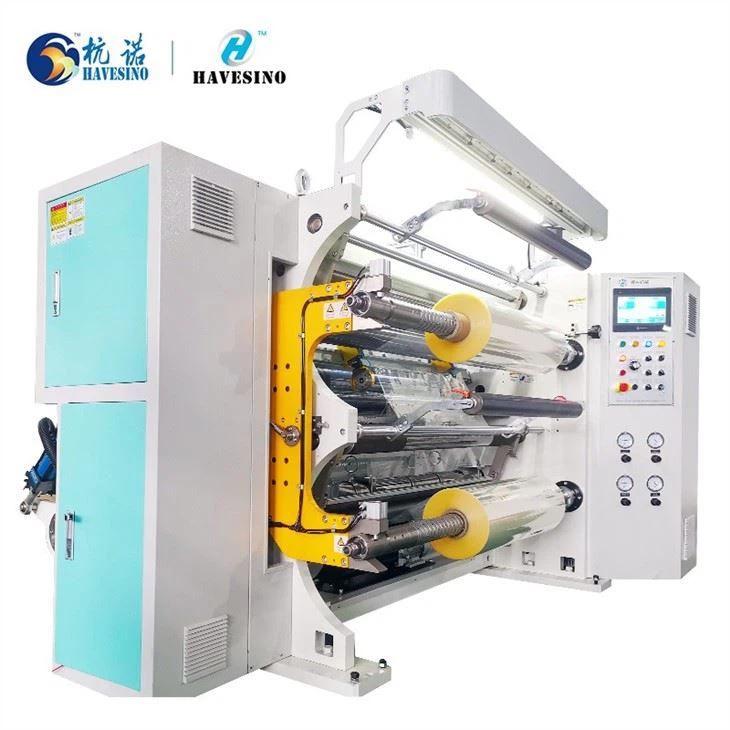

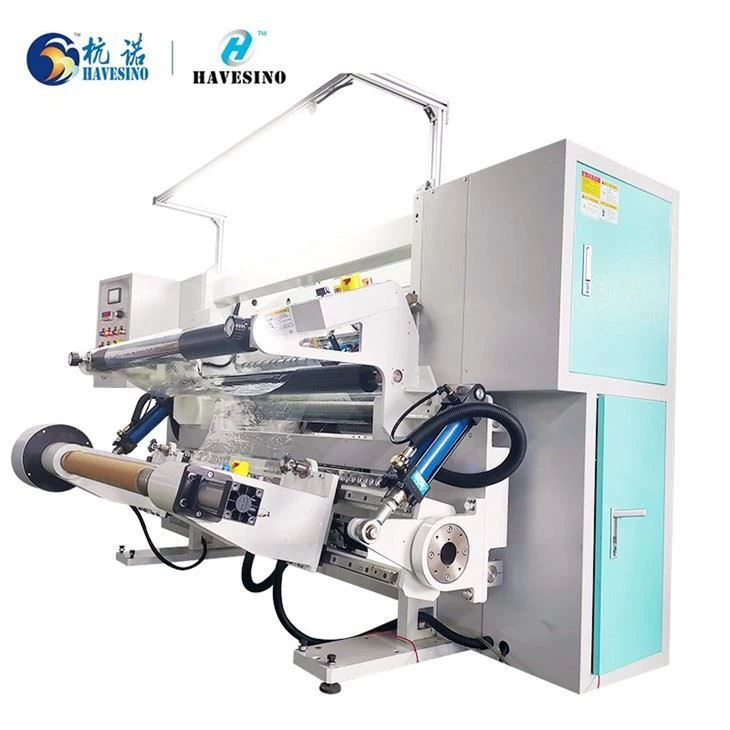

Cold Foil Slitting Rewinder

FILM / FOIL / LAMINATION / FLEXIBLE PACKING MATERIAL

SLITTER REWINDER

HN1300/HN1600

• Overview

  This machine is suitable for processing cellophane, PET, OPP, CPP, PE, PS, PVC and computer anti-counterfeiting labels, film rolls, foil rolls, various paper rolls, film rolls and the slitting of various materials after printing. The slitting operation of materials, film rolls, foil rolls, various paper rolls, film rolls and various materials after printing, the processing process is stable and fast.

•

Application

• PET, OPP, CPP, PE, PS, PVC
• Computer anti-counterfeiting labels
• Film rolls
• Foil rolls
• Various paper rolls

Features

• Equipped with touch screen and easy to operate.
• Optional built-in database can memorize 1000 groups of working parameters.
• The screen automatically displays an alert message.
• Adopted with two sets of independent tension detectors to provide correct and stable tension control.
• Equipped with tension reduction control function, it can provide excellent tension control of the rewinding materials.
• Trim Disposal
• Equipped with waste edge blowpipe
• Cantilevered rewinding shaft for easy and fast operation. (Swing out type)
• The rewinding mechanism is designed incorporating HCI friction differential rings to overcome the problems of material thickness variation. Slitting width can be selected according to customer needs.
• Rewinding Lay-on roller *4 sets.
• Optional tracking wheel system, stable tension to maintain the quality of the material.
• Equipped with statics eliminator, it discharges electrostatic charge while plastic film is being slit and rewound.
• Equipped with trim reject fan and left/right moving type trim winder. Trim winder is designed on machine side saved floor space and the winding tension is adjustable.
• Cutting system: razor cutting in the air
• Lift-up & floating type unwind stand with 3" air shaft. Single operator is required to manipulate and load the parent roll.
• The transmission mechanism is specially designed to ensure stable operation and perfect edge smoothness.
• Equipped with web adjustment roller. It can reduce the winkle that cause by the low parent roll quality.

• Specification

• Mechanical Speed (m/min)	500
  Unwind Stand	Shaftless Type
  Unwind Core Inner Diameter (mm)	76 / 3" or (152 / 6" Optional)
  Unwind Web Width (mm)	800 - 3,000
  Maximum Unwind Diameter (mm)	1200
  Unwind Tension Control	Magnetic Powder Brake
  Slitting Techniques	Razor / Shear Knives(Optional)
  Trim Removal	Blower with Trim Winder
  Rewind Core Inner Diameter (mm)	76/3"
  Minimum Rewind Web Width (mm)	25
  Maximum Rewind Diameter (mm)	800
  Rewind	Auto Tension Control





HAVESINO

We are a company specialized in fim slitting rewinding technology,we are not only a extrusion line producer,we also combine with mass production knowledge providing turn-key project solution.
Our design is always user –friendly; therefore ,our machine always designed under following guidance:

1.Production efficiency
2.Operation safety
3.Easy Operation
4.Easy maintenance
5.Durability
6.Automation

The strength comes from the affirmation and recognition of our customers.

We have more than 1,000 customers all over the world. Every time we receive recognition and praise from customers for our equipment, we are really happy from the bottom of our hearts. We also hope to share this joy with everyone who cares and loves us. We hope to support you to be different.
