Hot stamping foil Slitter
This machine is suitable for professional various foil slitting rewinding. It's equipped with many advanced accessories and practical functions: MITSUBISHI PLC, MITSUBISHI magnetic powder brake, ABB motor, E+L LPC, Yaskawa Transducer, NSK rollers etc. Practical functions like shaftless unwind, material splice table for changing JR, hydraulic lifting unit, unload frame to help unload finished rolls, laser positioning unit to help you set rewind paper cores precisely and quickly, positive auto pressing rollers controlled by air tank to provide perfect rewinding, etc... In general, this is an ideal model for your high quality and high quantity slitting rewinding.
Hot Foil Roll SlitterFeature
1. The motor unit adopts three servo motor connective control with high speed, stable tension and nice looking products.
2. Machine is equipped with tension detecting device with PLC auto constant tension control system.
3. Main driving uses rubber roller pressing type to avoid asynchronous problem between material and press roller. And unwind & rewind tension is separated to make whole tension more stable.
4. Rewind unit adopts two shafts to save time and material waste.
5. Machine adopts surface type passive rewinding and rubber roller pressure is adjusted by precision regulator. It's by constant tension control without bubble or wrinkles.
6. Unwind unit adopts motor driving; feeding speed is controlled by floating roller. Low friction cylinder controls floating roller tension to ensure unwind tension is constant.
7. Machine guiding rollers use mirror treatment to avoid any scratch.
8. Waste collect system can choose left-right moveable surface rewinding type, servo motor control center rewind type and blower fan collect type.
9. Slitting blade can use air blade, shear blade, razor blade for different material slitting.
Hot Foil Roll Slitter Optional Items
Jumbo roll uplifter : hydraulic type, for time & labor saving.
Hot Foil Roll Slitter Technical Parameters
|
Max. rewind O.D. |
600mm |
Machine width |
800MM/1300MM/1600MM |
|
Max. unwind O.D. |
800mm |
Core I.D. |
3 "/6" |
|
Min. slitting width |
30mm |
Machine max.speed |
500M/Min |
|
Air source |
0.6 MPa |
Power source |
380V 3P 50HZ |

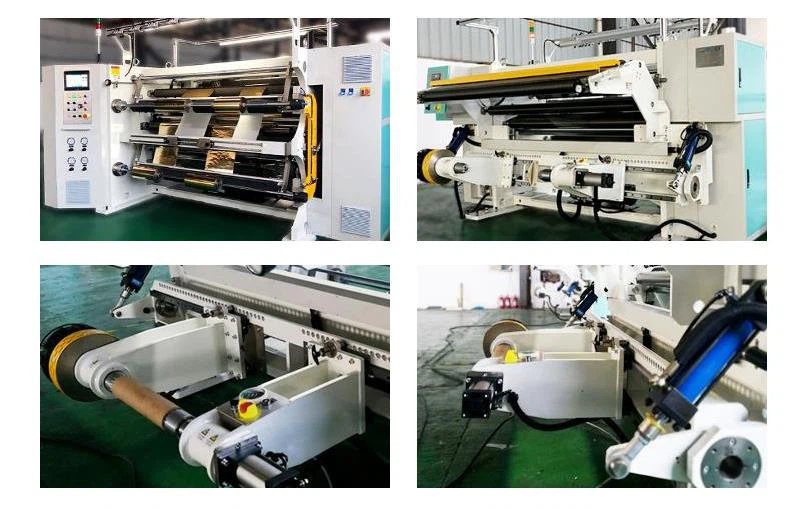

Hot Foil Roll Slitter Details:
ABOUT HAVESINO
We are one of top and leading manufacturer of Slitter Rewinder for over 12 years in China.
There are over 1000 pcs Slitter Rewinders in more than 85 Countries in the worldwide.
