Automatic Tenstion Control
Automatic Unloading Turret Frame
Film/Foil/Non-Woven/Label/Lamination Material Slitter Rewinder

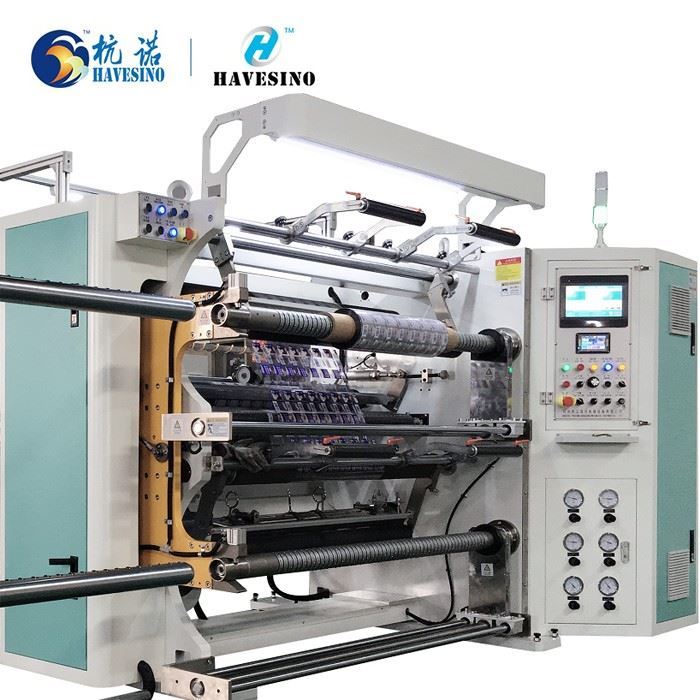

PE Film slitting and rewinding machine :
HN series slitter rewinders are the most top grade high quality model slitting machines, is suitable for slitting and rewinding various kind of paper, label stock, plastic film, foil, metallized film, and others laminates etc.
It is with 3 servo motor for automatic tension control, ultrasonic system for detect the unwind diameter, PLC touch screen for calculate the tension value change and give compensation. The rewind unit with Two rewinding shaft, non-stop and fully automatic cutting and change rewind rolls, automatic push rewind rolls for unload system. Slitting speed up to 500m/min.
PE Film slitting and rewinding machine Specification List :
|
Kinds of material |
BOPP, PET, Label paper, Film Etc. |
|
Thickness of material |
9-250μm |
|
Unwind width |
1300/1600/1800/2000mm |
|
Unwind diameter |
1200mm |
|
Unwind paper core |
Shaftless 3 and 6 inch core |
|
Model of slitting |
Round and straight knife,air knife as optional |
|
Machine speed |
550m/min |
|
Slitting speed |
500m/min |
|
Rewind width |
Min. 30mm |
|
Rewind diameter |
Max. 600mm |
