Application:
Our duplex Center Slitter Rewinder adopts double-shaft center rewinding with slip rewinding shafts, automatic tension control system is integrated to adapt to various tension applications. It is the choice for the converter that is looking for maximum productivity and minimum downtime. This is achieved by the machine continuing to run, whilst the operator takes off the finished rolls and puts new cores onto the rewind shaft.
Feature：
• Maximum speed 450m/min for optimum productivity
• Easy to assemble and maintain, with built in electrical panel, pneumatics, operator panel and remote diagnostic capabilities
• Automatic web cut off saves on downtime
• Handles multiple widths of PP, PE, PET, paper and more
• Core positioning for fast, accurate, easy set up even while machine is running
• Intuitive touch screen with job memory storage
• ASHE digital edge guider
• Guarding around the unwind to meet CE standards
• Unloading stands available
Basic specification:
| SLITTING WIDTH |
300mm-1600MM |
|
SLITTING THICKNESS |
12-250UM |
|
UNWIND DIA |
MAX 800MM OPTIONAL: MAX 1000M |
|
UNWIND CORE I.D |

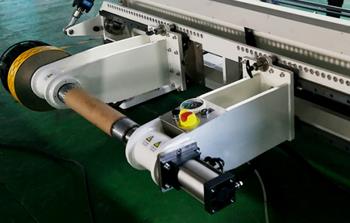

SHAFTLESS 3 INCH AND 6 INCH |
|
REWINDING DIA |
MAX 600MM |
|
REWINDING WIDTH |
MINI 30MM |
|
REWINDING CORE I.D |
3 INCH AIR SHAFT AND 1 INCH AIR SHAFT OPTIONAL: 6" AIR SHAFT, 3" OR 6" DIFFERENTIAL FRICTION AIR SHAFT |
|
SLITTING UNIT |
RAZOR BLADE OPTIONAL: SHEAR BLADE (EASY SET SHEAR BLADE SYSTEM) |
|
MECHANICAL SPEED |
MAX450M/MIN |
|
WORKING SPEE |
MAX400M/MIN |
|
MACHINE FRAME THICKNESS |
METER COUNTER |
|
WASTE EDGE UNIT |
AIR BLOWER |
|
POWER SOURCE |
380V,3 PHASE 4 WIRES,50Hz |
|
PNEUMATIC SOURCE |
0.7MPA |
|
LASER POSITIONING |
8 PCS |
|
MACHINE SIZE (REF. ONLY) |
3250mm(not including unloading frame tree)×2550mm×1970mm
4490mm(including the unloading frame tree)×2550mm×1970mm |
|
FLOOR SPACE(REF.ONLY) |
4500MM*3300MM |
|
N.W/G.W (REF. ONLY) |
3500/4000 |

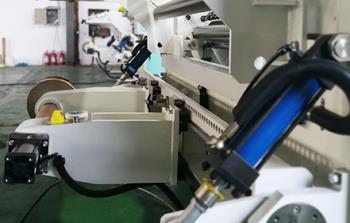

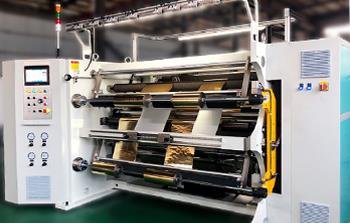

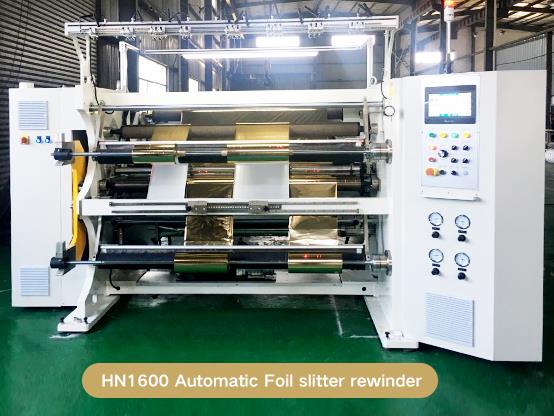

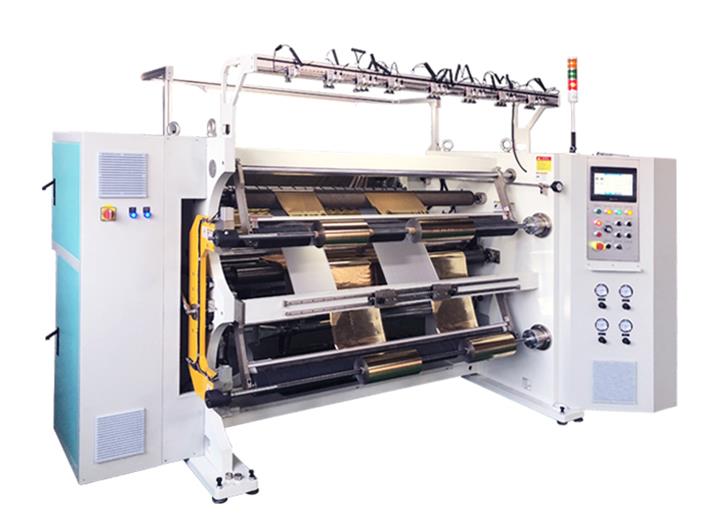

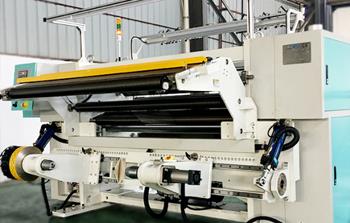

Details:
Recommended Products:
FAQ
Q:Are you a factory or trading company?
A:We are a factory, professional manufacturer.
Q:Where is your factory located? How can I visit there?
A:Our factory is located in Hangzhou City, Zhejiang Province, China, near Hangzhou xiaoshan international air port. We can arrange pick-up for a visit.
Q:Which industries are widely used in of your machine?
A:Those are mainly used in forming of three industries of adhesives products, electronics, and new energy power battery. Examples of protective film, cutting backlight products, adhesive products, insulation film, garment accessories, automotive adhesives tapes etc.
Q:How can I know if your machine can slit my material?
A:You can send us your samples for Slitting Test.
Q:How does your factory do regarding quality control?
A:Quality is our priority.
Q:How can I find the most appropriated machine for my material?
A:You can tell us the parameters of your material, then we can recommend you the most suitable machine for you.
Material Type:
Raw width of the material:
Thickness of the material:
Slitting width of the material:
Rewinding diameter:
Unwinding diameter:
Inner core diameter:
