Application:
Thermal transfer foil slitter is a commonly used equipment in the process of carbon ribbon processing. The carbon ribbon is cut into a predetermined size by a cutting knife, and the excess part of the edge can be cut off during the processing. The carbon ribbon is generally wrapped on the drum, and the two ends of the drum are connected to the rotating mechanism of the ribbon slitting machine, and the rotating mechanism drives the drum to rotate to work. The rotating mechanism generally has a certain height. In the current actual production, the drum wrapped with carbon ribbon is generally rolled on the ground to the bottom of the rotating mechanism, and the manpower is lifted to the rotating mechanism. The weight of the drum wrapped with carbon ribbon is generally hundreds of kilograms, and the rotating mechanism is not high in actual production, generally about half a meter, so that the space for personnel to operate is very limited. Therefore, manual lifting is very inconvenient and prone to occur. Accidents, resulting in damage to raw materials or even personal injury.
Thermal transfer foil slitter N1 is the most cost effective barcode ribbon slitting machine in China.
Features:
-
4 Taiwan Delta servo motors and drives
-
Siemens PLC
-
Winview touch screen
-
Semi-Automatic leader table
-
Ribbon saving functions
-
4 Pcs 1 inch air shaft
-
4 Pcs 1/2 inch air shaft
Basic Specification
| 1 SLITTING WIDTH: | 650mm-1010MM |
| 2 SLITTING THICKNESS: | 4-20 MICRON |
| 3 UNWIND DIA.: | 540MM (MAX) |
| 4 UNWIND CORE I.D.: | SHAFTLESS 6 INCH |
| 5 REWINDING DIA.: | MAX 110MM |
| 6 REWINDING WIDTH: | MINI 20MM |
| 7 REWINDING CORE I.D: | 1 INCH AIR SHAFT AND 1/2 INCH AIR SHAFT |
| 8 SLITTING UNIT MAGNETIC BLADE: | 30 PCS |
| 9 MECHANICAL SPEED: | MAX280M/MIN |
| 10 WORKING SPEED: | MAX250M/MIN |
| 11 MACHINE FRAME THICKNESS: | 40MM |
| 12 LEADER AND TRAILER STATION: | SEMI-AUTOMATIC+RIBBON SAVING UNIT |
| 13 METER COUNTER: | OMRON METER COUNTER |
| 14 WASTE EDGE UNIT: | 2 MOTOR |

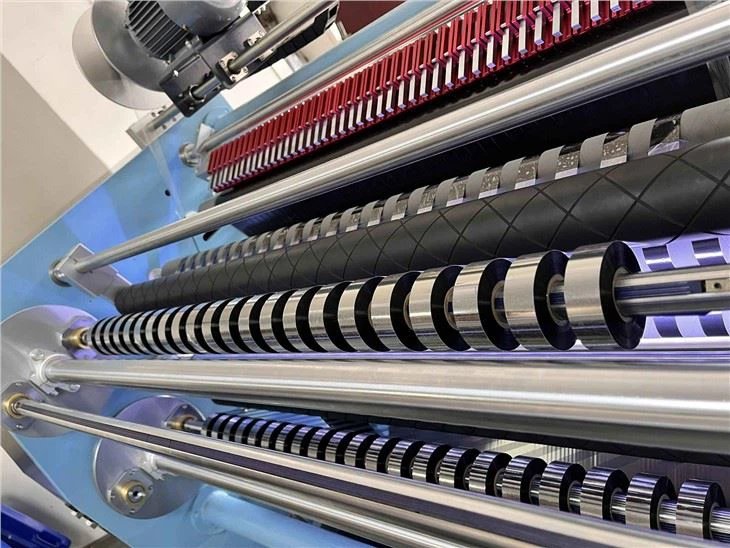

Detailed Picture
FAQ:
Q.: Guarantee period and after-sales services:
A.: 12 months since installation finish and machine normal working. During this guarantee period, We will provide key parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide spare parts at cost price.
Q:If I don't know how to operate, how can I get installation and training?
A:We have an experienced service group, We provide instruction, detailed operation video, and 7x24 hours online support to solve your any problem when you get the machine and start operation.
Q.:How does your factory do regarding qaulity control?
A.:We pay much attention on quality controlling from very beginning to the very end. Fully check and test takes before shipment.
About Havesino
Hangzhou Havesino Imp. & Exp. Co., Ltd. is a professional thermal transfer ribbon slitting equipments in China over 12 years. We produces all kinds or slitter rewinder machine.
