202203161614152e720f1bd423448a9a10bbff52d39264 APPLICATION

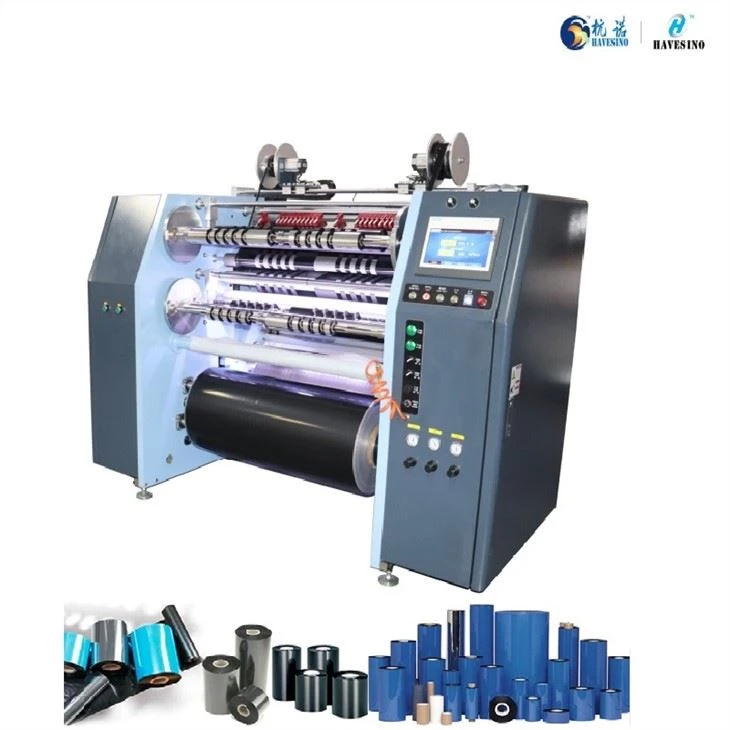

TTR converting machine refers to slitting equipment suitable for slitting and rewinding of various ribbons.

This thermal transfer ribbon slitter machine is suitable for winding tension controlled by servo motor, automatic counting, automatic subsection speed regulation, high efficiency and high precision. The automatic bracket is used to effectively control the swing of the winding shaft during high-speed operation. It can be equipped with 1", 1/2″ rewinding shaft.

It is important to control flatness during rewinding ribbon.

As is known that the ribbon base is a PET film. During the printing process, because the barcode printer will also adjust the tension, there will be a large tensile force between the supply shaft and the recovery shaft. At this time, the carbon ribbon is stressed. To be even and not easy to break. Therefore, the ribbon must be completely flat and parallel to the die when the ribbon is rewound, so that the edge of the ribbon will be evenly stressed during the printing process and not easily broken. If the stress point is on the edge of the ribbon, the ribbon is easy to break. The uneven rewinding of the carbon ribbon will also cause wrinkles during the printing process, which is prone to white lines, indentations and other poor printing.

The tension control when the ribbon is being slitted affects the rewinding tightness of the ribbon. When the tension is too large, the PET base film of the ribbon will be stretched and damaged, which will cause physical changes in the ink layer attached to the base film, which is easy to produce ribbon. The quality problems of the toner drop will affect the printing effect, and even cause serious quality problems that the dropped toner contaminates the product.

If the tension of the ribbon is not enough when slitting, the ribbon will be easily wrinkled, resulting in poor printing such as white lines and indentations during printing. If the ribbon rewinding tension is too loose, it can also lead to quality problems such as die offset and ribbon slippage during transportation or installation of the finished ribbon.

For the daily maintenance of the TTR converting machine, the following points should be paid attention to.

1. The daily maintenance should pay attention to the following five points. The electrical parts should be cleaned and inspected regularly to eliminate hidden dangers in time.

2. The daily maintenance should pay attention to the following five points. TTR slitting machine is completed by slitting and cross-cutting machine, so high-quality slitting and cross-cutting knives should be used.

3. The daily maintenance should pay attention to the following five points. The TTR slitting machine should have daily maintenance, and its standard is smooth, clean, and cleaned in place to ensure that the sliding parts of the equipment are in good condition.

4. For daily maintenance, the following five points should be paid attention to. Do maintenance work and check rotating parts regularly and irregularly. Regular adjustment, regular replacement, use of the commutator, and careful records to achieve the purpose of extending the service life of the equipment.

5 The daily maintenance should pay attention to the following five points. Improve the technical quality of ribbon cutting machine operators. As for the person who controls the operation of the local machine, it must be a professional. No one is allowed to operate without permission.
