Application

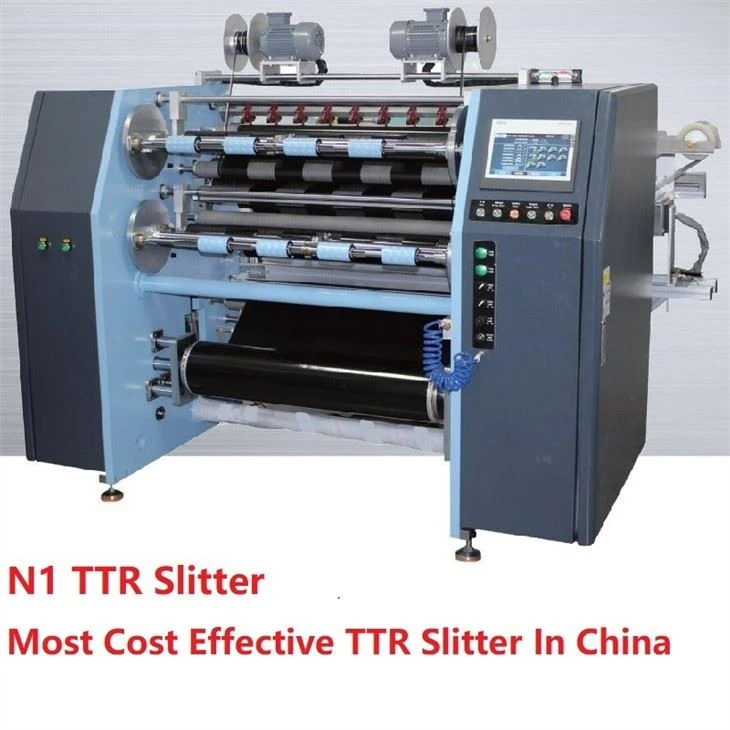

Thermal transfer ribbon cutting machine refers to slitting equipment suitable for slitting and rewinding of various ribbons.
This TTR slitter is suitable for winding tension controlled by servo motor, automatic counting, automatic subsection speed regulation, high efficiency and high precision. The automatic bracket is used to effectively control the swing of the winding shaft during high-speed operation. It can be equipped with 1", 1/2″ rewinding shaft.
The Advantages of TTR Slitting Machine
1. The host is driven by a variable frequency motor.
2. The unwinding tension adopts magnetic powder brake and adopts automatic tension control.
3. The winding is controlled by a variable frequency motor and is wound in a double station.
4. Automatic meter and straight knife configuration.
5. Automatic filming and packaging.
6. Use pneumatic feed when unwinding.
7. The whole machine is controlled by the central PLC.
The unwinding of our thermal transfer ribbon cutting machine is charged by an air-expanding shaft, and is equipped with a carbon tape feeding and receiving table. The upper and lower winding units each have two winding shafts for exchangeable winding. Unique TTR-specific flattening device. A complete set of imported drives and pneumatic components. The whole machine adopts imported PLC+touch screen control, field bus technology, and adopts dynamic adaptive tension control software based on speed and diameter.
Rewinding part:
Two rewind positions, Turret each position
Max rewind diameter: 125mm
Rewind width: 25mm-1010mm(smaller width on request)
Two servo driver system for winding positions, automatic tension control.
Pneumatic driver pressing roller for ribbon winding
4pcs 1 inch air expanding shaft
4pcs 1/2 inch air expanding shaft.
Maintenance
For the daily maintenance of the TTR converting machine, the following points should be paid attention to.
1. For daily maintenance, the following five points should be paid attention to. Do maintenance work and check rotating parts regularly and irregularly. Regular adjustment, regular replacement, use of the commutator, and careful records to achieve the purpose of extending the service life of the equipment.
2. The daily maintenance should pay attention to the following five points. Improve the technical quality of ribbon cutting machine operators. As for the person who controls the operation of the local machine, it must be a professional. No one is allowed to operate without permission.
