FILM / FOIL / LAMINATION / FLEXIBLE PACKING MATERIAL SLITTER REWINDER
HN1300
The Slitter You are Watching is a
12 Years History of Mature and Stable Model
More Than 800 pcs All Around the World

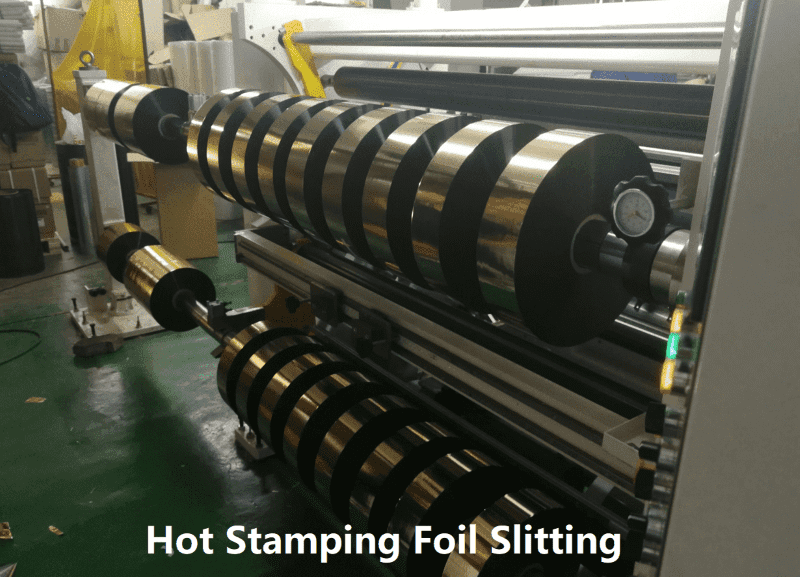

Hot Stamping foil Slitting and rewinding
HN Series Operation Whole Look
Our versatile machine finds application in a diverse range of materials, including but not limited to:
A. Slitting materials with thicknesses spanning from 12 to 180 micrometers, such as Hot Stamping Foil, Cold Foil, Holographic Foils, and Metalized Foil.
B. Precision slitting of primary films within the 12-180 micrometer range, including BOPP, PVC, LDPE, PET, and Single Silicon Film.
C. Efficiently handling laminates, encompassing Film-to-Film, Film-to-Foil, and Film-to-Paper, all within the 12-180 micrometer thickness range.
D. Accommodating Non-Woven Fabric materials with ease.
E. Slitting 40-80 gram Paper, Labels, and Adhesive Labels to perfection.
F. Expertly processing 20-40 micrometer Aluminum Foil.
In addition to these materials, our machine boasts adaptability to a wide array of other substrates. Please feel free to consult with our sales manager for a thorough assessment of its compatibility with your specific materials and requirements.
Production Specification
- 1MODEL HN1300
- 2SLITTING THICKNESS 12-200 MICRO METER
- 3SLITTING WIDTH MAX 1300MM
- 4MINI SLITTING WIDTH300MM
- 5UNWINDING DIAMETER MAX 800MM OPTIONAL: 1000MM
- 6UNWINDING TYPE SHAFTLESS 3 INCH AND 6 INCH
- 7UNWINDING BRAKE TYPE MAGNETIC POWDER BRAKE
- 8REWINDING WIDTH MINI 40MM
- 9REWINDING DIAMETER MAX 600MM OPTIONAL: 800MM
- 10REWINDING SHAFT NORMAL AIR SHAFT OPTIONAL: SLIPPING AIR SHAFT
- 11REWINDING SHAFT SIZE 3 INCH
- 12SLITTING UNIT SHAVOR BLADE OPTIONAL: SHEAR CIRCLE BLADE
- 13WALL THICKNESS 50MM
- 14MECHANICAL SPEED MAX 550M/MIN
- 15WORKING SPEED MAX 500M/MIN
- 16WASTE EDGE UNIT AIR BLOWER
- 17LASER POSITION LIGHT 10 PCS
- 18METER COUNTER WHEEL METER COUNTER
- 19POWER SUPPLY 380V,3PHASES, 50Hz OPTIONAL: AS PER CUSTOMER
- 20AIR POWER SUPPLY 0.7 Mpa (MINI)
- 21N.W 4000 KGS
- 22MACHINE SIZE(REFERENCE ONLY) 3300mm(not includs unloading frame tree)×2550mm×1970mm
- 4490mm(includs the unloading frame tree)×2550mm×1970mm
Function Introduction
HAVESINO SERVICE
1. Quality Warranty
One Year Warranty for the main parts
We Promise Commissioning services: Product arrived on site, Our Technical Staff Will Guide you to
train How to operations Until you get it (Installation charge, buyer responsible)
2. Training Services
We will provided a comprehensive technical training if necessary Training Include as following:
(1) Normal operating procedures for equipment training.
(2) Knowledge of routine maintenance on equipment training.
(3) Introduction of the equipment and service solutions for training.
3. Lifetime Service
Warranty expires, we will provide life-long service to all customers on a regular basis to provide equipment
upgrades and maintenance services.
4. Archives Service
After execution of the contract, we will establishment of archives, including the sale contract,
the technical parameters,
commissioning acceptance of a single report,
the relevant technical drawings.
Q & A
1. Are you a factory or trading company?
We are an actual factory and manufacturer with trading in the line of paper cutting machines, slitting machines for more than 10 years.
2. Where is your factory located? How can I visit there?
Our factory is located in Hangzhou City, Zhejiang Province, China,
less than one hour by air from Shanghai.
All our clients from home or abroad, are warmly welcome to visit us!
3. What about your payment term?
For new customer, our payment terms is 30% T/T in advance before production, the balance 70% should be paid before delivery.
4. Where is your main market?
Our productts are sold well in 30 provinces and have good reputation in China, we pay attention to developing the overseas market, such as Europe, Russia, Southeast Asia, Middle and South America, Africa, and other countries all over the world.
5. How dose your factory do regarding quality control?
Quality is our soul of company. Our people always attach great importance to quality controlling from the very beginning to the very end. Our factory has passed CE certification.
6. What about warranty and do the engineers available to over seas?
One year warranty. During this period, if some parts were problem, we will send by courier to you.
7. What about the after sales service?
We provide the whole life after sales service. Even after one year warranty, we support the spare partts price without benefit.
