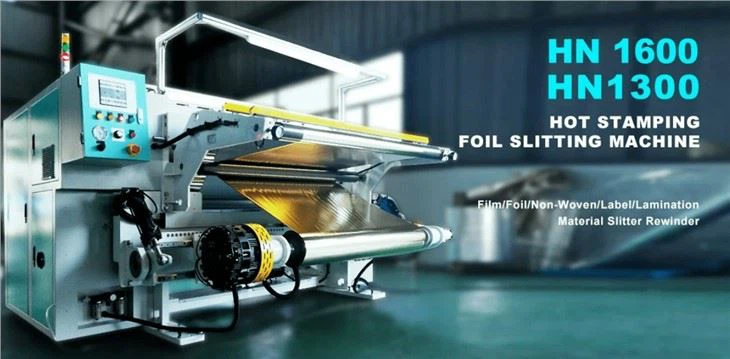

HEAT TRANSFER FILM/HOT STAMPING FOIL/ SLITTER REWINDER
HN1300
The Slitter You are Watching is a
Free Installing and Very Easy Operation Slitter
The Most Cost Effective Slitter in the World
7*24 Hours Online Support When Start Operation
HOT STAMPING FOIL SLITTING TEST
HOT STAMPING FOIL SLITTER OPERATION
Production Application
A.12-180um HOT STAMPING FOIL,COLDING FOIL,HOLOGRAPHIC FOILS,METALIZED FOIL
B.12-180um PRIMARY FILM (BOPP,PVC,LDPE,PET,SINGLE SILICON FILM and so on)
C.12-180um LAMINATES (FILM to FILM,FILM TO FOIL,FILM TO PAPER and so on)
D.Non-Woven FABRIC
E.40-80gram PAPER/LABEL/ADHESIVE LABEL
F.20-40UM ALUMINUM FOIL
AND OTHER MATERIAL (PlS CHECK WITH THE SALES MANAGER)
Production Function
Production Specification
- 1 MODEL HN1300
- 2 SLITTING THICKNESS 12-200 MICRO METER
- 3 SLITTING WIDTH MAX 1300MM
- 4 MINI SLITTING WIDTH 300MM
- 5 UNWINDING DIAMETER MAX 800MM OPTIONAL: 1000MM
- 6 UNWINDING TYPE SHAFTLESS 3 INCH AND 6 INCH
- 7 UNWINDING BRAKE TYPE MAGNETIC POWDER BRAKE
- 8 REWINDING WIDTH MINI 40MM
- 9 REWINDING DIAMETER MAX 600MM OPTIONAL: 800MM
- 10 REWINDING SHAFT NORMAL AIR SHAFT OPTIONAL: SLIPPING AIR SHAFT
- 11 REWINDING SHAFT SIZE 3 INCH
- 12 SLITTING UNIT SHAVOR BLADE OPTIONAL: SHEAR CIRCLE BLADE
- 13 WALL THICKNESS 50MM
- 14 MECHANICAL SPEED MAX 550M/MIN
- 15 WORKING SPEED MAX 500M/MIN
- 16 WASTE EDGE UNIT AIR BLOWER
- 17 LASER POSITION LIGHT 10 PCS
- 18 METER COUNTER WHEEL METER COUNTER
- 19 POWER SUPPLY 380V,3PHASES, 50Hz OPTIONAL: AS PER CUSTOMER
- 20 AIR POWER SUPPLY 0.7 Mpa (MINI)
- 21 N.W 4000 KGS
- 22 MACHINE SIZE(REFERENCE ONLY) 3300mm(not includs unloading frame tree)×2550mm×1970mm
- 4490mm(includs the unloading frame tree)×2550mm×1970mm
HAVESINO GROUP
Our company got equipment manufacturing base, adhesive tape making base and machinery importing and exporting company. Our machineries are sold far to Asia, Europe,Africaand other place internationally.
We got more than 300 workers, from which, 6 are professor level senior engineers, 40 are intermediate and senior technicians. We mainly undertake varies of adhesive tape making machines, slitting machines, and other whole set of production lines.
Depending on our own strength and design, research experience, we can put the new technology from abroad and domestic into use promptly. We got advantages of integrated design, manufacturing and operation till output style to undertake the projects of great difficulty in technology.
That's also why we can ensure the project design quality, raw material saving, cost reducing and to improve the entirety profit of the engineering project.
Since it is a good project – we aim to be more professional and achieve win-win!
HAVESINO Service
1). Any inquires will be replied within 24 hours
2). Before-sale and after-sale service, overseas engineer service is available
All products have been strictly quality test in our factory before packing
3). Free technical training,
until customers can operate independently and qualified tape production produced
4). 12 months warranty
5). long-term providing quick-wear parts
6). life time technical support service
