APPLICATION
The slitting process is an indispensable and even a very critical process in the production process of film production, composite packaging, aluminum plating, cigarette packs, printing and other industries.Slitting is the last process in the production of wide-width film, and plays a very important role in the entire production process.

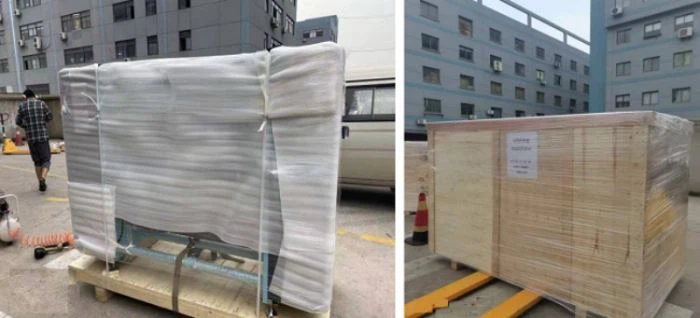

TTR slitting machine is suitable for rewinding various ribbons. The coiling tension is controlled by the Servo motor. It can automatically count, automatically grade the speed regulation, and automatically rotate the shaft. It has the characteristics of high efficiency and high precision. It adopts an automatic bracket to effectively control the swing of the pick-up disc during high-speed operation. It can be equipped with 1 and 1/2 rolls. Our ttr slitter is very easy on installation and operation.We will ship the slitter as two parts: front part and back part. When you get them, you only need to connect them together and set some simple parameter. Then you can start the production.
The unwinding is charged by an air-expanding shaft, and is equipped with a carbon tape feeding and receiving table. The upper and lower winding units each have two winding shafts for exchangeable winding. Unique TTR-specific flattening device. A complete set of imported drives and pneumatic components. The whole machine adopts imported PLC+touch screen control, field bus technology, and adopts dynamic adaptive tension control software based on speed and diameter.
The deepest experience in practice is that without excellent equipment, there will be no excellent slitting quality. However, in order to obtain excellent quality products, it is more necessary to rely on people's careful use, adjustment and maintenance to bring out the best state of the equipment. Create maximum benefits for the enterprise.
BASIC SPECIFICATION
FUNCTIONAL DESCRIPITION
Rewinding:
1. 30 pcs magnetic Clip Blade Holders, change slitting width quick and easy.

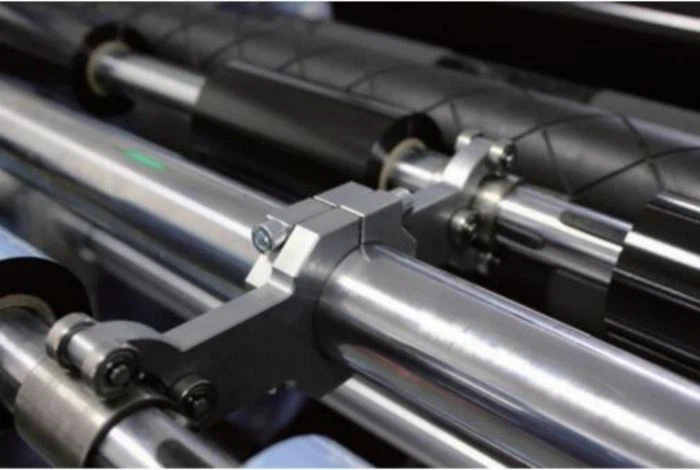

2. 4 pcs 1 Inch Air Shafts and 4 pcs 1/2 inch Air Shafts, make the core loading more easy. With the shafts holder, the rewinding shaft is stabel and faster.
3. Automatic tension control system, slitting perfect quality roll
4. SIEMENS PLC stable control and long life using
5. SEMI-AUTO leader and trailer table with ribbon saving function
GUARANTEE AND SERVICE
1 100% Test and Check Before Shipment.
2 Detailed Instruction Manual.
3 One Year Guarantee for All Key Parts.
4 Installing and Operator Training Service Provided.
5 Whole-Life Free Technical Support.
6 Regular On-Site Routine Inspection.
