Thermal Transfer Resin Ribbon Slitter

Thermal Transfer Resin Ribbon Slitter

Thermal transfer resin ribbon slitter from Havesino can convert thermal transfer ribbon, wax ribbon, wax enhanced ribbon, resin ribbon, ink ribbon, color tape, coding foil thickness from 4-20 micron. It is the cheapest ttr barcode ribbon slitting machine in China. The slitting machine is equipped with the following:
1.30 pcs magnetic blade holder
2.1" and 1/2" air shafts
3.4 servo motors and drives
Send Inquiry
Chat Now
Description



APPLICATION

Thermal transfer resin ribbon slitter from Havesino can convert thermal transfer ribbon, wax ribbon, wax enhanced ribbon, resin ribbon, ink ribbon,color tape, coding foil thickness from 4-20 micron. It is the cheapest ttr barcode ribbon slitting machine in China. With low investment, this Thermal transfer resin ribbon slitter, your manufacturing dream comes true!



BASIC SPECIFICATION
1 SLITTING WIDTH 650mm-1010MM
2 SLITTING THICKNESS 4-20 MICRON
UNWIND DIA. 540MM (MAX) OPTIONAL:600MM
UNWIND CORE I.D. SHAFTLESS 6 INCH
REWINDING DIA. 110MM MAX
6 REWINDING WIDTH MINI 25MM
REWINDING CORE I.D 1 INCH AIR SHAFT AND 1/2 INCH AIR SHAFT
SLITTING UNIT MAGNETIC RAZOR BLADE 30 PCS
9 MECHANICAL SPEED MAX280M/MIN
10  WORKING SPEED MAX250M/MIN
11  MACHINE FRAME THICKNESS: 30MM
12 LEADER AND TRAILER STATION: SEMI AUTOMATIC+RIBBON SAVING UNIT





FUNCTIONAL DESCRIPITION

ink ribbon slitter

WHY CHOOSE US?

MANUFACTURER

We are professional manufacturer for machinery equipment & Thermal transfer resin ribbon slitter over 12 years.

EXPERIENCES

20 years of OEM/ODM experiences

ORDER QUANTITY

Bulk orders ready in 25-30 days

TURNOVER

Turnover increasing 20% every year



FAQ

Q:lf there is any problem on the machine,how can I solve it?

A:First of all,we have online service, after submitting and problem we will come up with solution, if you can solve it by yourself we will give you procedure step by step to teach you solve it, by picture,or video. if any electronic parts in problem which is occured itself(not improper operation), within one year warranty we will send new parts for replacement.



Q:What's service or guarantee can you offer?

A:One year guarantee for key parts of machine;Machine installing and worker training service;Free technical support whole life;Material support.



Q:The voltage in our country is different from yours,does the machine can be changed?

A:Yes. We do it according to your requirement.



ABOUT US

HAVESINO is one of the top suppliers  for ttr slitting equipments in China for over 12 years. As the first supplier who sold out the fully automatic ttr slitter, we dedicated ourselves to researching and  producing machines at exquisite details and reasonable prices. We have in excess of hundreds of machine installations all around the world!



havesino



RECOMMEND PRODUCTS





11

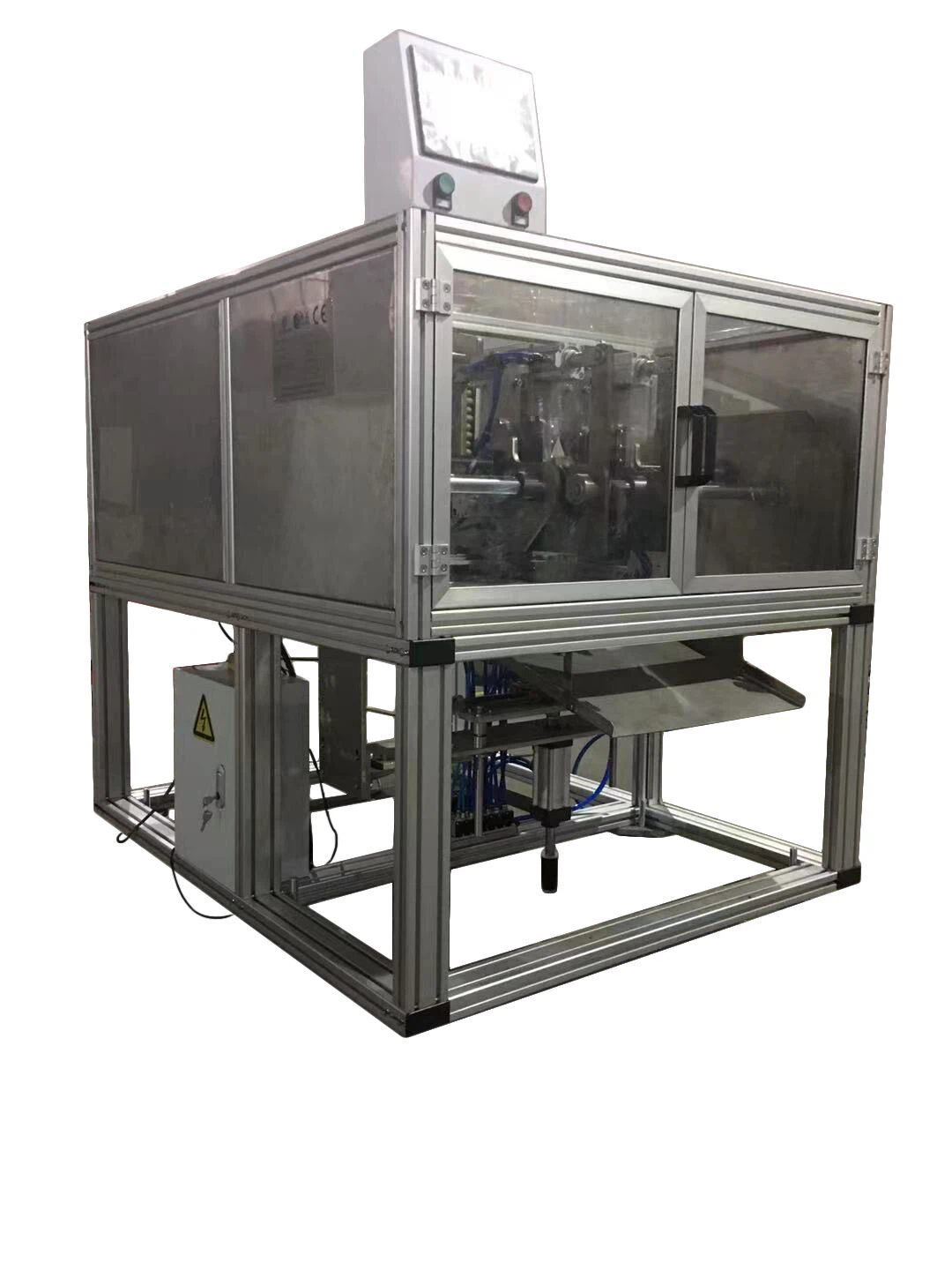

Fully Automatic Paper Core Notch Punching Machine
