APPLICATION
High Speed Fully Auto Barcode Ribbon Slitting Rewinding Machine(N3M-AS) is the most advanced thermal transfer ribbon slitter machine. It is a professional slitter for Barcode Ribbon,Fax Ribbon,Thermal Transfer Ribbon, Wax Resin Ribbon, TTR Ribbon Thickness from 4-20 micron.

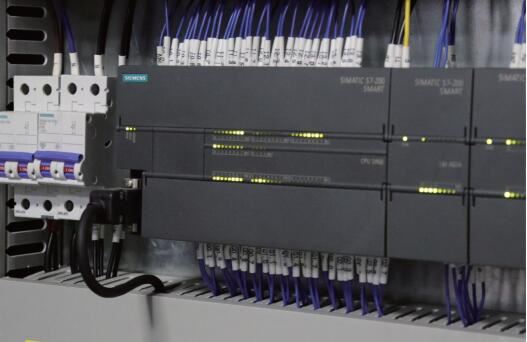

Our slitting machine is the most cost-effective machine in China, the price is lower than the market average, but all the accessories are used by internationally renowned brands. Among the core PLC of the machine, we choose the German Siemens brand. Meanwhile, All the motors and converters are from Sanyo Japan.
Siemens plc is with high reliability, strong anti-interference ability.The reliability of the plc is the key performance of electrical control equipment. Siemens PLC adopt modern large-scale integrated circuit technology, strict production process manufacturing and the advanced anti-interference technology in internal circuit, all these make it high reliable during working. From the perspective of the external circuit of Siemens PLC, electrical wiring and switching contacts have been reduced to hundreds or even thousands of times, and failures have been greatly reduced.
Siemens PLC is easy to learn and use, and is deeply loved by engineers and technicians. As a general industrial control computer, Siemens PLC is an industrial control device for industrial and mining enterprises. Its interface is easy, and the programming language is easy for engineering and technical personnel to accept. The graphic symbols and expressions of the ladder language are quite close to the relay circuit diagram, and the function of the relay circuit can be easily realized with only a small number of switch logic control instructions of Siemens PLC. It opens a convenient door for people who are not familiar with electronic circuits, computer principles and assembly language to use computers to engage in industrial control.
BASIC SPECIFICATION
| 1 SLITTING WIDTH: | 650mm-1010MM |
| 2 SLITTING THICKNESS: | 4-20 MICRON |
| 3 UNWIND DIA.: | 600MM (MAX) |
| 4 UNWIND CORE I.D.: | SHAFTLESS 6 INCH |
| 5 REWINDING DIA.: | MAX 110MM(AROUND 1300M) OPTIONAL: 140MM MAX |
| 6 REWINDING WIDTH: | MINI 25MM |
| 7 REWINDING CORE I.D: | 1 INCH AIR SHAFT AND 1/2 INCH AIR SHAFT |
| 8 SLITTING UNIT MAGNETIC BLADE: | 30 PCS |
| 9 MECHANICAL SPEED: | MAX450M/MIN |
| 10 WORKING SPEED: | MAX380M/MIN |
| 11 MACHINE FRAME THICKNESS: | 40MM |
| 12 LEADER AND TRAILER STATION: | FULLY AUTOMATIC+RIBBON SAVING UNIT |
| 13 METER COUNTER: | OMRON METER COUNTER |
| 14 WASTE EDGE UNIT: | 2 SERVO REWINDING MOTOR |
| 15 POWER SOURCE: | 380V, 50HZ, 3 PHASES AC 6KW |
| 16 PNEUMATIC SOURCE: | 0.6-0.8MPA |
| 17 MACHINE SIZE (REF. ONLY): | 2146MM*1898MM*1639MM |
| 18 FLOOR SPACE(REF.ONLY)： | 2200MM*2000MM |
| 19 N.W/G.W (REF. ONLY): | 1800KGS/2000KGS |
FUNCTIONAL DESCRIPITION
Rewinding:
GUARANTEE AND SERVICE
1 100% Test and Check Before Shipment.
2 Detailed Instruction Manual.
3 One Year Guarantee for All Key Parts.
4 Installing and Operator Training Service Provided.
5 Whole-Life Free Technical Support.
6 Regular On-Site Routine Inspection.
