Aluminum Foil Slitting Machine
Aluminum foil is manufactured by rolling aluminum slabs cast from molten aluminum and generally is doubled in a cold rolling mill because of its thinness.
Due to its property of resistance to light, oxygen, moisture and lower cost, aluminum foil is suitable for extensively industrial applications such as insulation, packaging, and basis for aluminum tape.
In the slitting and rewinding process of Aluminum foil, especially for some foil slitters with high speed, the damaged of Aluminum foil usually occurs by slip issues.
So self-adhesive rubber cork tapes are frequently used as a roller coating in most of Aluminum foil slitting machines.
HAVESINO have emerged as the leading organization, involved in offering a wide array of Aluminum Foil Rewinder Machine for our esteemed clients. Our offered machine is available in several technical specifications and is broadly used for making aluminium foil. The provided machine is well-manufactured with the best grade components and advanced technology at our premises. Moreover, this machine can be availed by our valuable clients from us at market leading prices.
Aluminum Foil Slitting Machine SF1100 Basic specification
This slitter can be used for precise slitting of foil thicknesses from 6 - 50 µm into slitting widths starting from 25 mm. The finished roll diameter ranges up to 600 mm in slitting operation and maximum 1,000 mm for re-reeling operation on the bottom rewinder. Furthermore, hard rolled as well as soft annealed material can be processed to the best quality.
· UNWIND STATION:
· Hydraulic Lifter
· Automatic Web guiding system
· Magnetic Powder Automatic Brake
· Max 1400mm Diameter Rolls
· REWIND STATION:
· Surface Rewinding System
· Rewind Control through, two Clutch assemblies mechanical
· Individual Slip Ring arrangement as per require cut
· Circular Knife (Standard) (Razor Cutting – Optional)
· Mini Cutting 25mm
· Max Cutting Dia. 600mm
· CONTROL PANEL:
· 10.4 inch Touch Screen Panel
· Variable A.C. drive with Blower & Web Guide Controls

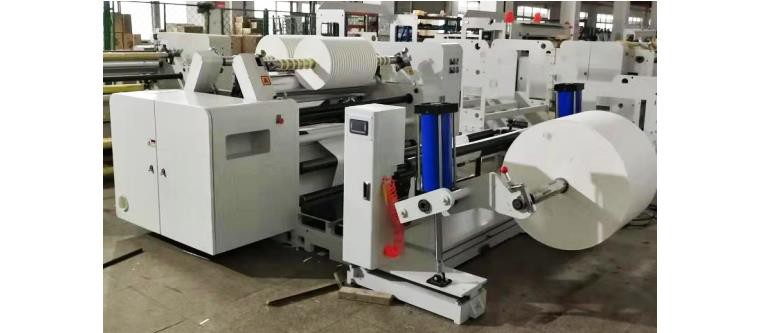

Aluminum Foil Slitting Machine SF1100
FEATURES :
· Most versatile, model providing combination of Duplex Center cum Surface Rewind System
· Constantly flawless slit rolls by providing center driver drum to maintain. Fixed minimum distance between slitting and rewind point
· Constant Line Speed causes constant tension rolls
· Two Rewinding Shafts carried on swinging arms are center driven through adjustable slipping clutch
· Counter Balance System to adjust the pressure between rewind reels and center drum
· Suitable for off caliper / slippery / stretchy material
· In special case, rewinding shaft can be supplied with provision of individual different slip assembly for each slit reels
· Slitting methods as per customer requirement like: Scissor cut/crush cut (Circular knives) / Razor blade slitting system
· Auto Tension Control System
· Digital Line Edge Guide System
· Web Edge Guide System (Hydraulic / Digital Ultrasonic)
· Pneumatic system for Arm / Clutch / Brake / Nip
· Air shaft for Unwind Station & Rewind Station
· Safety chucks at Unwinder Station
· Bow rollers or Banana Roller for Wrinkle Free Working
· Four motor synchronized drive
