CONVERTING MACHINERY SALES

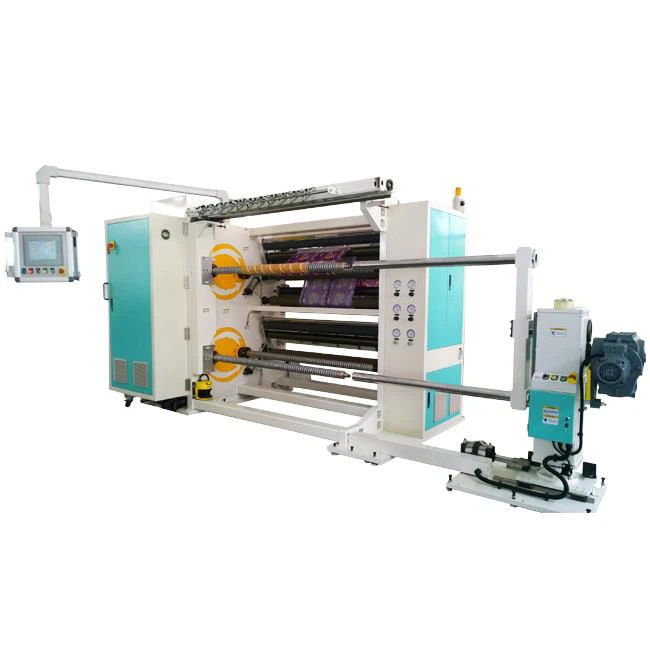

CONVERTING MACHINERY SALEs HN 1600T Slitter Rewinder
Fully automatic, dual turret type, high speed machines suitable to slit and rewind fl exible plastic films (such as LDPE, CPP, BOPP),
laminated films and paper.
This model is equipped with:
- Non-stop automatic roll changing cycle
- Laser pointing system to facilitate the winding cores positioning
- Automatic positioning of cutting knives
- Smart shafts
- Servo assisted unloading system of the fi nished rolls
- Self-centering shaftless unwinder
Features：
Havesino Import & Export Co., Ltd. is proud to introduce the HN1600T Slitter Rewinder, a state-of-the-art solution for precision film processing. This high-performance machine is designed for industries that demand superior accuracy and efficiency in their operations.
The HN1600T is equipped with advanced technology, allowing it to efficiently slit and rewind a wide range of materials, including films, foils, and laminates. Its robust construction and precise controls ensure consistent and reliable performance, even in high-volume production environments.
Key features of the HN1600T include customizable slitting options, variable speed control, and automatic tension control, making it adaptable to various material types and thicknesses. It also boasts user-friendly interfaces, facilitating ease of operation.
This machine is a testament to Havesino's commitment to delivering cutting-edge solutions for your production needs. When you choose the HN1600T Slitter Rewinder, you're choosing a reliable and efficient partner in achieving your manufacturing goals. Trust Havesino for quality, precision, and innovation in film processing machinery.
CONVERTING MACHINERY SALEs Basic specification
| 1 | MODEL | HN1600T |
| 2 |
MATERIAL WIDTH |
MAX1600MM |
| 3 |
SLITTING THICKNESS |
12UM-180UM |
| 4 |
UNWIND DIA |
1200MM(MAX) |
| 5 |
UNWIND CORE DIA |
76MM (3 INCH) AND 153MM (6 INCH) |
| 6 |
UNWIND TYPE |
SHAFTLESS |
| 7 |
REWIND DIA. |
600MM (MAX) |
| 8 |
REWIND WIDTH |
RAZOR BLADE 25MM MINI SHEAR BLADE 45MM MINI |
| 9 |
REWIND CORE DIA |
76MM( 3 INCH) AND 152MM (6 INCH) |
| 10 |
REWIND CORE TYPE |
FRICTION AIR SHAFT |
| 11 |
SLITTING UNITE |
SHEAR BLADE 50 PCS + RAZOR BLADE 50PCS |
| 12 |
MECHANICAL SPEED |
600M/MIN(MAX) |
| 13 |
WORKING SPEED |
500M/MIN(MAX) |
| 14 |
POWER |
380V±10%,3 PHASE,50Hz |
| 15 |
TOTAL AROUND : |
60KW |
| 16 |
AIR CYLINDER-DRIVEN UNLOADING FRAME |
|
| 17 |
LASER POSITIONING AND LIGHT DEVICE 10 PCS |
|
| 18 |
HYDRAULIC LIFTING UNIT |
|
PICTURES REFRENCE:
(Customer Factory Cases)
