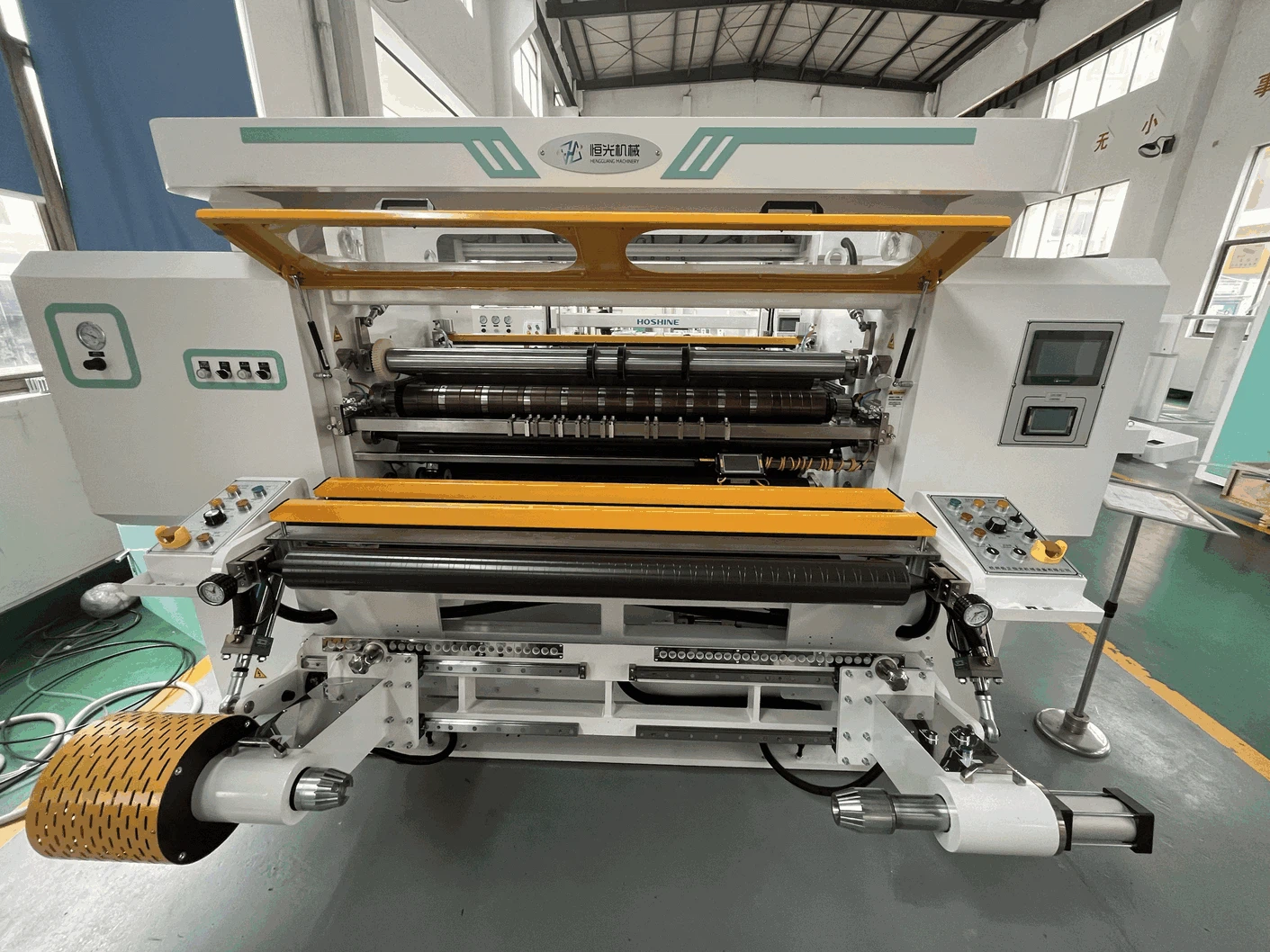

Introducing the Upgraded HN1300HSF PLUS Slitting Rewinding Machine
Optimized for Hot Stamping Foil, Cold Foil, and Flexible Packaging Film Slitting – Better performance in narrow width and reduce the dust
We are excited to introduce the HN1300HSF PLUS, one of the most popular and stable slitter models for Hot Stamping Foil and Cold Foil applications. Now upgraded with even more features, it combines high speed, high precision, and user-friendly control – all while remaining highly cost-effective.
Highlights at a Glance:
✅ Both Unwind & Rewind Close-loop tension system
Closed-loop tension control in slitting machines ensures consistent, precise tension for higher slitting accuracy and material protection.
✅ Faster Slitting Speed
Maximum working speed of 500–600m/min
Supports 1", 3", and 6" cores – all in a single machine
✅ Cutting-Edge Precision
Automatic tension control with servo motor ensures stable and accurate web handling
Independent front and rear control platforms for easy operation
Razor and circular knife dual system, capable of cutting materials from 6 to 240 μm. Better performance to dealing with thin films below 20μm with ease, including Composite aluminum foil, metallized film, primary film,hot stamping foil,cold foil, label and more
✅ Robust & Reliable
Reinforced machine frame with 50mm thick side plates and five crossbeams
Powerful structure ensures long-term precision and durability
✅ Brand Components You Can Trust
Built with premium parts: Mitsubishi PLC, Yaskawa inverters, Danma servo motors, Fukuta motors, Airtac valves
✅ Smarter Unwinding & Rewinding
Air shaft rewinding with optional differential shafts (dual bead type)
Shaftless unwinding with 3–6 inch chucks and hydraulic lifting system
Optional encoder meter counter with ±0.2% accuracy
✅ High-Efficiency Slitting System
Easy tool-free blade replacement
13mm minimum slitting width, stable 25–30mm circular blade slitting
Transparent safety cover for safe and visible blade operation
Optional auto-stop function when the cover is opened
✅ Accurate EPC System
Taiwan Pausource for precise edge tracking
Adjustable web guiding rollers to correct material deviation
✅ Ergonomic & User-Friendly
Compact rear operation platform for better visibility and access
All tension and speed settings are easy to adjust with intuitive controls
HN1300HSF Plus hot stamping foil slitting video:
1 Inch Slitting: https://youtu.be/V0oqL7zrUnw
3 Inch Slitting: https://youtu.be/nhsSLcwSMt0
6 Inch Slitting: https://youtu.be/vS-6Ec0yG78
The upgraded HN1300HSF PLUS is your next best investment.
Whether you're processing hot stamping foil, cold foil, thin films,or narrow width slitting work, this machine delivers exceptional results with excellent value.
Contact us to get a quote or learn more.
