Laminated Film Slitter Rewinder Supplier

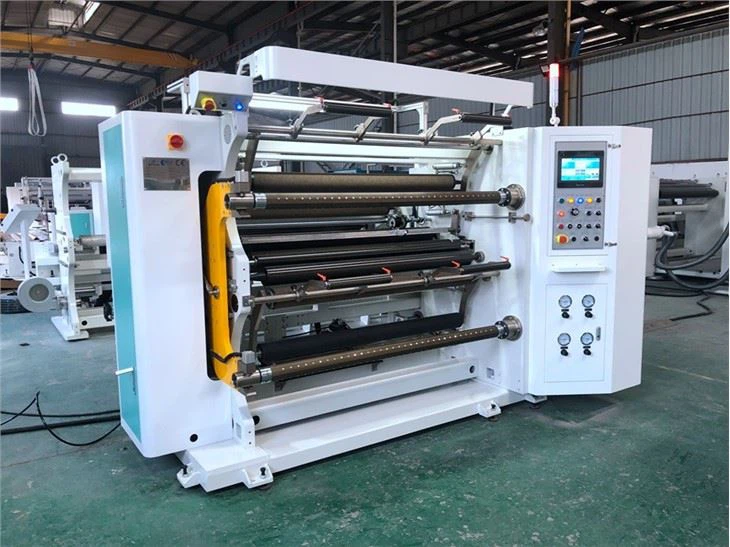

HN series high speed slitter rewinders for adhesive paper and film, slitting and rewinding machine for jumbo roll paper.
Feature
HN series slitter rewinders are top grade high quality model slitting machines, suitable for slitting and rewinding various kind of paper, label stock, plastic film,foil ,metallized film, and others laminates etc.
It is with five motor for automatic tension control, ultrasonic system for detect the unwind diameter, PLC touch screen for calculate the tension value change and give compensation. This HN model with independent unwind unit and web guide, suit for big diameter of material, slitting speed up to 550m/min.
Basic specification
| 1 | SLITTING WIDTH | 300MM-3000MM |
| 2 |
SLITTING THICKNESS |
12-250 UM |
| 3 |
UNWIND DIA |
MAX 800MM OPTIONAL: MAX 1000MM |
| 4 |
UNWIND CORE I.D |
SHAFTLESS 3 INCH AND 6 INCH |
| 5 |
REWINDING DIA |
MAX 600MM |
| 6 |
REWINDING WIDTH |
MINI 30MM |
| 7 |
WORKING SPEED |
MAX 500M/MIN |
| 8 |
MACHINE FRAME THICKNESS |
50MM |
| 9 |
METER COUNTER |
METER COUNTER |
| 10 |
WASTE EDGE UNIT |
AIR BLOWER |
